Threaded multi coupling PSA06

hydraulicfor hydraulic oil

Product overview
The MultiFaster PSA06 is a hydraulic multi-connection coupler assembly designed to accept either a PS06 mobile half or up to four individual ISO 16028 3/8" couplings. It enables quick simultaneous hydraulic connections and offers an optional 3-pin electrical contact on selected variants.

Items / Available variants

• 2PSA06-1-4-2/22FWC
  Size: 10 mm (3/8")
  Specs:
  4 x Couplings 3/8": M22x1,5 MALE 15L - ISO 8434-1-L
  Flow rate: 40 l/min at 0.2 MPa
  1 Electrical Contact: 3 Pins
  Seals: NBR & PUR
  Weight: 3550 g
  Housings: 5
  Couplings: 4
  Electrical Contacts: 1
• 2PSA06-4-2/22FC
  Size: 10 mm (3/8")
  Specs:
  4 x Couplings 3/8": M22x1,5 MALE 15L - ISO 8434-1-L
  Flow rate: 40 l/min at 0.2 MPa
  Seals: NBR & PUR
  Weight: 3550 g
  Housings: 4
  Couplings: 4

Visuals (representative)

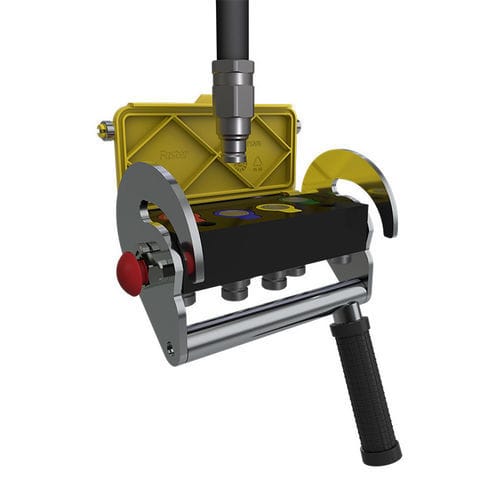

Main product images show the MultiFaster PSA06 assembly and typical four-line multi-connection configurations.

Downloads
Product datasheet and user instructions are available for the PSA06 series (see datasheet and user instruction documents).

Technical specifications

• Series: MultiFaster (PSA06)
• Dash Size: 06 (10 mm / 3/8")
• Performance product type: 2P
• Working pressure: 25 MPa
• Flow rate: 40 l/min at 0.2 MPa
• Spillage: 0.008 ml
• Burst pressure (Male): 100 MPa
• Burst pressure (Female): 100 MPa
• Burst pressure (Male + Female): 100 MPa
• Coupling interface: up to 4 x ISO 16028 compatible individual couplings (M22x1,5 MALE 15L - ISO 8434-1-L)
• Seals: NBR & PUR
• Material: Aluminium & Steel
• Surface treatment: MATE 500 (CrIII) & Paint
• Working temperature range: -25 °C to 100 °C
• Specifications: Series Interchange: MultiFaster; Valve Type: Flat; Connection: Lever; Disconnection: Lever; Connection Under Pressure: Allowed (Residual)
• Typical configurations: up to 4 couplings (3/8") plus optional electrical contact (3 pins) on selected variants
