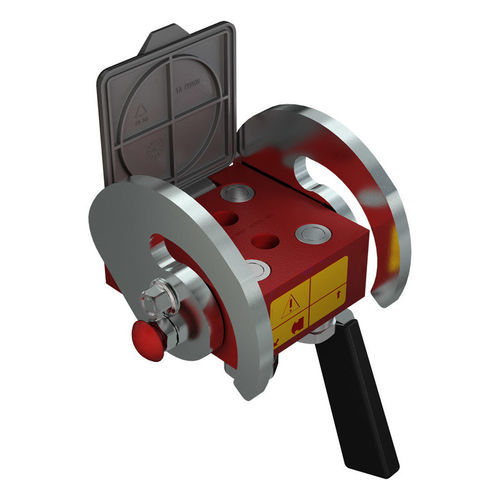

Hydraulic multi-coupling PH408femalefor industrial applicationsaluminum
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Other characteristics
- female, for industrial applications, aluminum, multi-port
Description
Product description
Multi-connection system specifically designed for high-pressure hydraulic applications (46 MPa). Equipped with four lines dash size 08 (12.5 mm / 1/2"). Available in two surface/handle variants: red painted plates with stainless-steel handle and cams, or black cataphoresis plates with Zn-Ni plated carbon-steel handle and cams (part numbers suffixed with S).
Available versions / Part numbers
Technical overview
Dash size: 08 (12.5 mm / 1/2") · Working pressure: 46 MPa · Flow rate: 60 l/min (at 0.2 MPa) · Spillage: 0.01 ml · Burst pressure (male): 138 MPa · Burst pressure (female): 138 MPa · Burst pressure (male + female): 138 MPa
Warnings
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications / Technical characteristics
Multi-connection system specifically designed for high-pressure hydraulic applications (46 MPa). Equipped with four lines dash size 08 (12.5 mm / 1/2"). Available in two surface/handle variants: red painted plates with stainless-steel handle and cams, or black cataphoresis plates with Zn-Ni plated carbon-steel handle and cams (part numbers suffixed with S).
Available versions / Part numbers
- PH408-4-12G F C
4 x Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
Flow rate: 60 l/min at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Weight: 6115.5 g
Housings: 4 · Couplings: 4 - PH408S-4-12G F C
4 x Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
Flow rate: 60 l/min at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Weight: 6116 g
Housings: 4 · Couplings: 4 - 3PH408-4-12G MC
4 x Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
Flow rate: 60 l/min at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Housings: 4 · Couplings: 4 - 3PH408S-4-12G M C
4 x Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
Flow rate: 60 l/min at 0.2 MPa
Seals: NBR & PUR
Weight: 3220 g
Housings: 4 · Couplings: 4
Technical overview
Dash size: 08 (12.5 mm / 1/2") · Working pressure: 46 MPa · Flow rate: 60 l/min (at 0.2 MPa) · Spillage: 0.01 ml · Burst pressure (male): 138 MPa · Burst pressure (female): 138 MPa · Burst pressure (male + female): 138 MPa
Warnings
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications / Technical characteristics
- Series Interchange: MultiFaster
- Valve Type: Flat
- Connection: Lever
- Disconnection: Lever
- Connection Under Pressure: Allowed Residual
- Material: Aluminium & Steel
- Seals: NBR & PUR
- Working temperatures: -25 °C to 100 °C
- Surface treatment: MATE 1000 (ZnNi) & Paint
- Burst / Working pressure: Working pressure 46 MPa; Male/Female burst pressure 138 MPa
