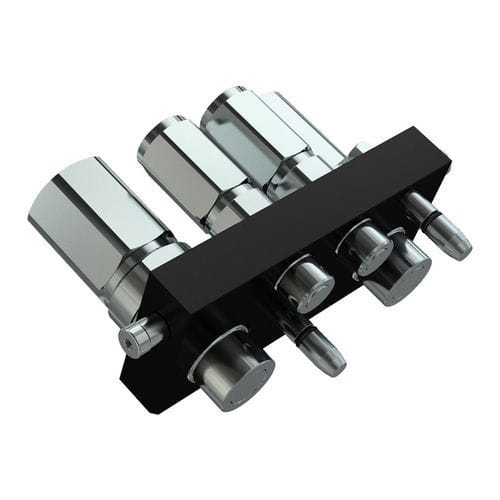

Electric multi coupling 3P4A series

threadedfor hydraulic oil

Product series
P4A

Overview
MultiFaster multi-connection plate for two dash sizes: 2 lines size 08 (12.5 mm) and 2 lines size 16 (25 mm). Available in female and male housings with multiple configurations including optional electrical contact and different coupling combinations.

Items - Female variants

• Part number: 3P4A-1-3-A F C
  Specs:
  1 x Coupling 1/2": BSPP 1/2" female - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  2 x Couplings 1": BSPP 1" female - ISO 1179-1
  Flow rate (1"): 150 l/min at 0.2 MPa
  1 electrical contact: 3 pins
  Seals: NBR & PUR

• Part number: 3P4A-4-B F C
  Specs:
  2 x Couplings 1/2": BSPP 1/2" female - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  2 x Couplings 1": BSPP 1" female - ISO 1179-1
  Flow rate (1"): 150 l/min at 0.2 MPa
  Operating temperature: -25 °C to 100 °C
  Seals: NBR & PUR

Items - Male variants

• Part number: 3P4A-1-3-A M C
  Specs:
  1 x Coupling 1/2": BSPP 1/2" female - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  2 x Couplings 1": BSPP 1" female - ISO 1179-1
  Flow rate (1"): 150 l/min at 0.2 MPa
  1 electrical contact: 3 pins
  Seals: NBR & PUR

• Part number: 3P4A-4-C M C
  Specs:
  2 x Couplings 1/2": BSPP 1/2" female - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  2 x Couplings 1": BSPP 1" female - ISO 1179-1
  Flow rate (1"): 150 l/min at 0.2 MPa
  Seals: NBR & PUR

Technical Specifications (burst/pressure/performance)

• Dash size 08 — Size: 12.5 mm; Working pressure: 25 MPa; Flow rate: 70 l/min at 0.2 MPa; Spillage: 0.01 ml; Burst pressure (male/female/combined): 100 MPa
• Dash size 16 — Size: 25 mm; Working pressure: 25 MPa; Flow rate: 150 l/min at 0.2 MPa; Spillage: 0.03 ml; Burst pressure (male/female/combined): 100 MPa

Materials & Treatments
Material: Aluminium & Steel
Seals: NBR & PUR
Surface treatment: MATE 500 (CrIII) & paint

Working temperatures
-25 °C to 100 °C

Specifications
Series interchange: MultiFaster
Valve type: Flat
Connection: Lever
Disconnection: Lever
Connection under pressure: Allowed (residual)

Warnings
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm.

Features / Technical specifications

• Series: P4A (MultiFaster)
• Available dash sizes: 08 (12.5 mm) and 16 (25 mm)
• Working pressure: 25 MPa
• Flow rates: 70 l/min (12.5 mm), 150 l/min (25 mm) at 0.2 MPa
• Spillage: 0.01 ml (08), 0.03 ml (16)
• Burst pressure (male/female/combined): 100 MPa
• Coupling standard: BSPP female - ISO 1179-1
• Electrical contact option: 3-pin contact available
• Seals: NBR & PUR
• Materials: Aluminium & Steel; surface treated with MATE 500 (CrIII) and paint
• Operating temperature range: -25 °C to 100 °C
• Valve: Flat; lever connection/disconnection; connection under pressure allowed (residual)
