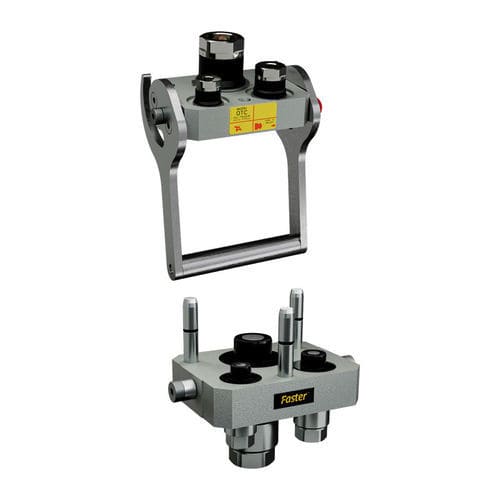

Hydraulic quick coupler MultiQTC

Product series
MultiQTC

Product name
MultiFaster 3 lines (size 06, 08, 20)

Applications
Construction Equipment

Downloads available (listed on page)

• Data sheet (PDF)
• User Instruction

Items (female / male variants, summary of table entries)
Female items
Part number: MQ3A-06-08-20-A-FC
Body sizes (mm): 10 & 12,5 & 31,5 — Housings: 3 — Tag: new
Specs: 1 x Coupling 3/8": BSPP 3/8" FEMALE - ISO 1179-1; Flow Rate: 20 l/min at 0.2 MPa
1 x Coupling 1/2": BSPP 1/2" FEMALE - ISO 1179-1; Flow Rate: 70 l/min at 0.2 MPa
1 x Coupling 1-1/4": BSPP 1-1/4" FEMALE - ISO 1179-1; Flow Rate: 350 l/min at 0.2 MPa
Seals: HNBR & PUR

Part number: MQ3A-00-08-20-A-FC
Body sizes (mm): 12,5 & 31,5 — Housings: 3 — Tag: new
Specs: 1 x Coupling 1/2": BSPP 1/2" FEMALE - ISO 1179-1; Flow Rate: 70 l/min at 0.2 MPa
1 x Coupling 1-1/4": BSPP 1-1/4" FEMALE - ISO 1179-1; Flow Rate: 350 l/min at 0.2 MPa
Seals: HNBR & PUR

Male items
Part number: MQ3A-06-08-20-A-MC
Body sizes (mm): 10 & 12,5 & 31,5 — Housings: 3 — Tag: new
Specs: 1 x Coupling 3/8": BSPP 3/8" MALE - ISO 1179-1; Flow Rate: 20 l/min at 0.2 MPa
1 x Coupling 1/2": BSPP 1/2" MALE - ISO 1179-1; Flow Rate: 70 l/min at 0.2 MPa
1 x Coupling 1-1/4": BSPP 1-1/4" MALE - ISO 1179-1; Flow Rate: 350 l/min at 0.2 MPa
Seals: HNBR & PUR

Part number: MQ3A-00-08-20-A-MC
Body sizes (mm): 12,5 & 31,5 — Housings: 3 — Tag: new
Specs: 1 x Coupling 1/2": BSPP 1/2" MALE - ISO 1179-1; Flow Rate: 70 l/min at 0.2 MPa
1 x Coupling 1-1/4": BSPP 1-1/4" MALE - ISO 1179-1; Flow Rate: 350 l/min at 0.2 MPa
Seals: HNBR & PUR

Performance / burst & flow data (summary of technical table)
Dash 06 — Size 10 mm — Working Pressure: 46 MPa — Flow Rate: 20 l/min — Spillage: 0.01 ml — Male burst pressure: 140 MPa — Female burst pressure: 140 MPa
Dash 08 — Size 12.5 mm — Working Pressure: 46 MPa — Flow Rate: 70 l/min — Spillage: 0.01 ml — Male burst pressure: 140 MPa — Female burst pressure: 140 MPa
Dash 20 — Size 31.5 mm — Working Pressure: 46 MPa — Flow Rate: 350 l/min — Spillage: 0.03 ml — Male burst pressure: 140 MPa — Female burst pressure: 140 MPa

Materials & treatments
Material: Aluminium & Steel
Seals: HNBR & PUR
Surface treatment: CrIII & Zn-Ni
Working temperatures: -20 °C to 100 °C

Specifications (page)
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual

Technical features / specifications

• Series: MultiQTC
• Product name: MultiFaster 3 lines (size 06, 08, 20)
• Available body sizes (mm): 10, 12.5, 31.5
• Coupling standards: BSPP female - ISO 1179-1
• Flow rates at 0.2 MPa: 20 l/min (3/8"), 70 l/min (1/2"), 350 l/min (1-1/4")
• Working pressure: 46 MPa
• Burst pressures (male/female): 140 MPa
• Spillage: 0.01 ml (06,08), 0.03 ml (20)
• Seals: HNBR & PUR
• Materials: Aluminium & Steel
• Surface treatment: CrIII & Zn-Ni
• Working temperature range: -20 °C to 100 °C
• Valve type: Flat; Connection / Disconnection: Lever
