Harvester quick coupler PLK

hydraulic

Product Overview

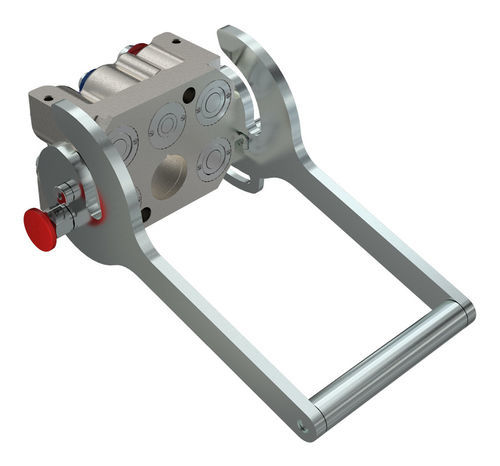

MultiFaster PLK series quick couplers developed for harvesting applications. Interchangeable to market-driven standards. Typical configuration: two size 06 lines and three size 09 lines to combine 3/8\" and 9/16\" circuits.

Applications

• Agriculture — Harvesters and harvesting equipment requiring multi-connection hydraulic circuits (standard multi-connector solutions).

Available items and configurations

• 3PLK-0-5-A F C — Body sizes: 10 & 14.3 mm (3/8\" & 9/16\"). 2 × Couplings 3/8\": 11/16\"-16 UN MALE ORFS; Flow rate 20 l/min (3/8\") at 0.2 MPa. 1 × Coupling 9/16\": 11/16\"-16 UN MALE ORFS; Flow rate 35 l/min (9/16\") at 0.2 MPa. Additional 9/16\" options: 13/16\"-16 and 1\"-14 UNS MALE ORFS (each 35 l/min at 0.2 MPa). Temperature: -25 °C to 100 °C. Seals: NBR & PUR. Weight: 9500 g. Housings: 6. Couplings: 5.
• 3PLK-0-5-B F C — Same body sizes 10 & 14.3 mm; same coupling types and flow rates as 3PLK-0-5-A F C. Weight: 10170 g. Housings: 6. Couplings: 5.
• 3PLK-0-2-A M C — Body size 10 mm (3/8\"). 2 × Couplings 3/8\": 11/16\"-16 UN MALE ORFS; Flow rate 20 l/min at 0.2 MPa. Temperature: -25 °C to 100 °C. Seals: NBR & PUR. Weight: 3471 g. Housings: 6. Couplings: 2.
• 3PLK-0-2-C M C — Body size 10 mm (3/8\"). 2 × Couplings 3/8\": 3/4\"-16 UNF MALE ORFS - ISO 11926-1; Flow rate 20 l/min at 0.2 MPa. Temperature: -25 °C to 100 °C. Seals: NBR & PUR. Housings: 6. Couplings: 2.
• 3PLK-0-4-A M C — Body sizes 10 & 14.3 mm; 2 × Couplings 3/8\": 11/16\"-16 UN MALE ORFS; 1 × Coupling 9/16\": 11/16\"-16 UN MALE ORFS; Flow rates as above; Seals: NBR & PUR. Housings: 6. Couplings: 4.
• 3PLK-0-4-B M C — 2 × Couplings 3/8\": 3/4\"-16 UNF MALE ORB - ISO 11926-1; 2 × Couplings 9/16\": 7/8\"-14 UNF FEMALE ORB - ISO 11926-1; Flow rates: 20 l/min (3/8\") and 35 l/min (9/16\"). Seals: NBR & PUR. Housings: 6. Couplings: 4.
• 3PLK-0-5-A M C — Body sizes 10 & 14.3 mm; multiple 9/16\" coupling configurations including 13/16\"-16 and 1\"-14 UNS; Flow rates 35 l/min at 0.2 MPa for 9/16\". Temperature: -25 °C to 100 °C. Seals: NBR & PUR. Weight: 4700 g. Housings: 6. Couplings: 5.
• 3PLK-0-5-B M C — Similar to 3PLK-0-5-A M C with variant coupling arrangement. Weight: 4700 g. Housings: 6. Couplings: 5. 1 electrical contact for some variants.
• 3PLK-0-5-C M C — 2 × Couplings 3/8\" (11/16\"-16 UN MALE ORFS) and 3 × Couplings 9/16\" (11/16\"-16 UN MALE ORFS). Flow rates: 20 l/min (3/8\") and 35 l/min (9/16\"). Seals: NBR & PUR. Weight: 4700 g. Housings: 6. Couplings: 5. 1 electrical contact in some configs.
• 3PLK-0-5-E M C — 2 × Couplings 3/8\": 3/4\"-16 UNF FEMALE ORB; 3 × Couplings 9/16\": 7/8\"-14 UNF FEMALE ORB; Flow rates: 20 l/min and 35 l/min. Seals: NBR & PUR. Housings: 6. Couplings: 5.
• 3PLK-0-2-B M C — Body size 14.3 mm (9/16\"). 1 × Coupling 9/16\": 13/16\"-16 UN MALE ORFS and 1 × 1\"-14 UNS MALE ORFS options. Flow rate 35 l/min at 0.2 MPa. Temperature range and seals as above. Weight: 3304 g. Housings: 6. Couplings: 2.
• 3PLK-0-3-A M C — Mixed 3/8\" and 1\"-14 UNS options; combination of 3/8\" couplings and 1\" connections. Flow rates: 20 l/min (3/8\") at 0.2 MPa. Seals: NBR & PUR.

Notes
Multiple configuration variants combine 3/8\" (10 mm) and 9/16\" (14.3 mm) couplings with different thread standards (UN/UNF/UNS and ORFS/ORB) to match market-driven interchange standards. Electrical contact options are available on some male configurations. Item weights and number of housings/couplings vary by model.

Technical specifications

• Series interchange: MARKET
• Valve type: Flat
• Connection / disconnection: Lever
• Connection under pressure: Allowed (male half up to working pressure)
• Material: Cast iron & steel
• Seals: NBR & PUR
• Working temperature: -25 °C to 100 °C
• Surface treatment: MATE 500 (CrIII)
• Burst pressure (dash 06 / size 10 mm 3/8\"): Working pressure 22 MPa; Flow rate 20 l/min; Spillage 0.02 ml; Male burst 69 MPa; Female burst 62 MPa; Male+Female burst 83 MPa.
• Burst pressure (dash 09 / size 14.3 mm 9/16\"): Working pressure 22 MPa; Flow rate 35 l/min; Spillage 0.02 ml; Male burst 69 MPa; Female burst 62 MPa; Male+Female burst 83 MPa.
• Typical flow rates at 0.2 MPa: 20 l/min for 3/8\" circuits; 35 l/min for 9/16\" circuits.
• Weights vary by configuration: examples include ~3304 g, 3471 g, 4700 g, 9500 g, 10170 g depending on model/variant.
