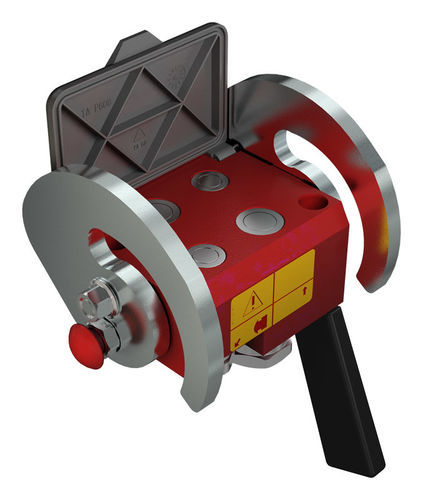

Threaded multi coupling PH510

for hydraulic oiltransportconstruction

Overview
Multi-connection hydraulic coupling system designed for high-pressure applications (working pressure 46 MPa). Equipped with two Dash 08 (12.5 mm) and two Dash 12 (19 mm) lines, lever-operated connection/disconnection and allowed residual-pressure connection. Available with different surface treatments to suit installation environments.

Available versions

• Red painted plates with stainless steel handle and cams
• Black cataphoresis plates with Zn-Ni (MATE 1000) plated carbon steel handle and cams (part number with S)

Applications

• Construction equipment
• Vehicles & road machines

Items - Female
Part number: PH510-4-A F C
Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate (1/2"): 60 l/min at 0.2 MPa
Couplings 3/4": BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate (3/4"): 105 l/min at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Weight: 7204 g

Part number: PH510S-4-A F C
Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate (1/2"): 60 l/min at 0.2 MPa
Couplings 3/4": BSPP 3/4" FEMALE - ISO 1179-1
Flow Rate (3/4"): 105 l/min at 0.2 MPa
Seals: NBR & PUR
Weight: 7204 g

Items - Male
Part number: 3PH510-4-A M C
Couplings: 2 x Couplings 1/2" and 2 x Couplings 3/4" (BSPP FEMALE - ISO 1179-1 variants)
Flow Rate: 60 l/min (1/2") and 105 l/min (3/4") at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Weight: 4137.4 g

Part number: 3PH510S-4-A M C
Couplings: 2 x Couplings 1/2" and 2 x Couplings 3/4" (BSPP FEMALE - ISO 1179-1 variants)
Flow Rate: 60 l/min (1/2") and 105 l/min (3/4") at 0.2 MPa
Seals: NBR & PUR
Weight: 4137 g

Technical specifications

• Series Interchange: MultiFaster
• Valve Type: Flat
• Connection: Lever
• Disconnection: Lever
• Connection Under Pressure: Allowed Residual
• Material: Aluminium & Steel
• Seals: NBR & PUR
• Working temperatures: -25 °C to 100 °C
• Surface treatment: MATE 1000 (ZnNi) & Paint
• Burst pressure / Performance (per dash size): Dash 08 (12.5 mm) — Working pressure: 46 MPa; Flow rate: 60 l/min at 0.2 MPa; Spillage: 0.01 ml; Male burst pressure: 138 MPa; Female burst pressure: 138 MPa; Male+Female: 138 MPa. Dash 12 (19 mm) — Working pressure: 46 MPa; Flow rate: 105 l/min at 0.2 MPa; Spillage: 0.02 ml; Male burst pressure: 138 MPa; Female burst pressure: 138 MPa; Male+Female: 138 MPa.
