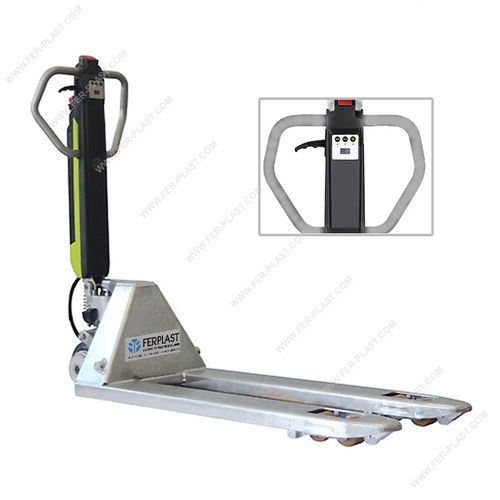

Hydraulic pallet truck FP-AGL-PRO G

electricoutdoorlift

GALVANIZED PALLET TRUCK - MOTORIZED WHEELS - ON-BOARD COMPUTER - INCREASED BATTERY - FP-AGL-PRO GThe FP-AGL-PRO G motorized pallet truck is built with a galvanized structure, making it suitable for outdoor environments, the pharmaceutical or chemical industry, or wet or saline environments such as fish markets and fishmongers. With excellent resistance to humidity and oxidation, it does not fear rain.To avoid damage to components, the integrated sealing of the electronic boards and additional protection of the battery and key allow the pallet truck to withstand atmospheric agents and temperature variations.ATTENTION: Despite its excellent resistance characteristics, this model is not suitable for high-pressure washing.The FP-AGL-PRO G model is designed to minimize operator effort and is ideal for outdoor applications and humid environments, for deliveries and supermarkets. Equipped with a higher power lithium-ion battery (36V, 12.8 Ah) and an on-board computer with OLED display that indicates the status of the pallet truck to the operator and allows the maximum speed to be varied between 3.2 and 5.3 Km/h depending on the application.The long-life lithium battery is installed on the steering wheel. Easily removable, it recharges in about 4 hours with the supplied charger.NOTE: With a surcharge when ordering, it is possible to purchase the 42V 6A FAST CHARGE charger, reducing charging times from 4 hours to 2 hours.The front display with 6 different screens provides constant indications to the operator and allows adjustment of the pallet truck parameters. By pressing the central SCROLL button, the operator can view information on: Battery status; Total and partial hour meter; Total and partial speedometer; Speed setting; Diagnostic; Error reporting.It is equipped with two driving-steering wheels with a diameter of 200 mm, allowing excellent stability in any application without the use of stabilizers. The non-marking rubber wheels combined with the two traction motors make it an extremely versatile and silent model.On the drawbar, there is a manual switch to deactivate the electric brakes in case of low battery, turning the pallet truck into a normal manual model except for a small friction of the wheels.To move the pallet truck in confined spaces, an innovative function allows the truck to be used with the tiller in a vertical position. This function can be activated via the turtle button on the rudder. Once engaged by pressing the start button, the truck will move at reduced speed. Pressing the turtle button again deactivates the mode.The "QuickLift" configuration for quick lift allows loads to be lifted quickly, thanks to the specific hydraulic pump. The lifting of the load is possible with 2 pump strokes.MODELFP-AGL-PRO G 1150x525LiftingManualHandlingElectricDrive systemAccompanimentLoad (Q)1200 kgCenter of gravity (c)600 mmLoad wheel axle distance from fork base (x)932 mmStep (y)1192 mmWeight in service with battery88 KgRear axle load (full load)891 kgFront axle load (full load)395 kgFront axle load (without load)59 KgRear axle load (without load)27 KgFront wheelsRUBBERRear wheelsPOLYFront wheel size40mm x 200mm diameterRear wheels size60mm x 82mm diameterNumber of wheelsN°2 front driving wheelsN°4 rear wheelsFront track (b10)162 mmRear track (b11)375 mmForks stroke (h3)115 mmHeight of the drawbar in driving position max (h14)1185 mmHeight of the drawbar in driving position min (h14)710 mmFork height lowered (h13)85 mmTotal length (l1)1600 mmDrive unit length (l2)450 mmTotal width (b1)525 mmFork dimensions - Thickness (s)55 mmFork dimensions - Width (e)150 mmFork length (l)1150 mmFork width (b5)525 mmFree span in the middle of the step (m2)30 mmAisle for stowage for pallets 800x1200 longitudinally (Ast)2063 mmTurning radius (Wa)1382 mmTravel speed with load4.2 Km/hTravel speed without load5.3 Km/hLifting speed with load12 pumpsLifting speed without load12 pumpsDescent speed with load0.1 m/sSlope that can be overcome with load5%Slope that can be overcome without load10%Service brakeElectricTraction motor power2x0.25 kWBattery TypeLithium IonBattery voltage36VNominal Battery Capacity, Min12.8 AhNominal Battery Capacity, Max12.8 AhBattery mass min3 KgBattery mass max3 KgNoise in the operator's eardB(A) 60OPTIONAL:Fast lift pump "Quicklift"Extra spare batteryINCREASE Battery charger for FAST CHARGE (2 hours) 42V 6A - Can only be purchased when orderingCapacity: 1200 KgGalvanized structure for corrosion resistanceOn-board computer with OLED displayLithium-ion battery 36V 12.8 AhManual lifting, electric handlingQuickLift hydraulic pump optionTravel speed: up to 5.3 Km/hWeight in service: 88 KgFork dimensions: 1150x525 mmNoise level: 60 dB(A)
