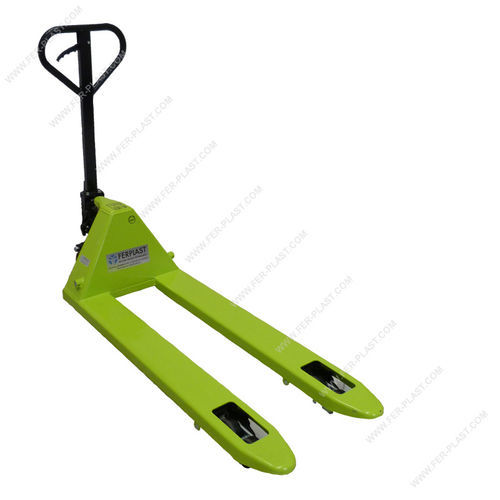

Hand pallet truck FPGS-PRO QL 25/115 series

hydraulicsteeldouble-roller

Quick lift professional pallet trucks, capacity 2500 Kg. with proportional descent valve and inlet / outlet rollers. FPGS PRO MANUAL QUICK LIFT PALLET TRUCK LOAD 2500 Kg The manual pallet trucks of the FPGS PRO 2500 series, with a load of 2500 kg, are professional models, robust and suitable for handling pallets in industrial and logistic environments. The "Quick Lift" function allows you to lift loads quickly, thanks to the specific hydraulic pump. Two pump strokes allow you to lift loads up to 120 kg from the ground or three pump strokes for loads over 120 kg, compared to 5 pump strokes with a hand pallet truck equipped with a standard pump. They are also characterized by: - Structure in drawn sheet steel with rounded fork tips. - Hydraulic unit built in cast iron with integrated oil tank to prevent leaks and rustproof chromed piston - Lifting with drawbar activation and automatic return to vertical position. - Safety valves for lifting and overload limit switches. - Control valve for descent proportional to the weight exerted by the load. - Directional wheels diameter 200 mm, in polyurethane. - Ergonomic tiller with 3D design for optimal grip Available in the following models: Pallet truck with forks mm. 1150x525 with single roller Pallet truck with forks mm. 1150x525 with double roller The FPGS PRO 2500 models are equipped with a double or single loading roller. The rollers are made of polyurethane with a diameter of mm. 82 and with ball bearings. Powder coating dried at a temperature of 250 °C to ensure maximum resistance to wear and atmospheric agents. FEATURES FPGS-PRO QL 25/115-1/2 Load: Kg. 2500 Forks length (l): mm. 1150 Forks width (b5): mm. 525 Fork width (e): mm. 150 Height min. forks (h13): mm. 85 Forks stroke (h3): mm. 115 Total length (l1): mm. 1550 Rudder height (h14): mm. 1160 Operator side wheels: diam. 200 x 45 mm Front wheels material: Polyurethane Load side rollers: diam. 82 x 60 mm Roller material: Polyurethane Weight: 63 Kg. COLORS AND FEATURES The trolleys presented are of European production. They are excellent quality models suitable for professional use. The color of these is not binding and depends on the model available when ordering.
