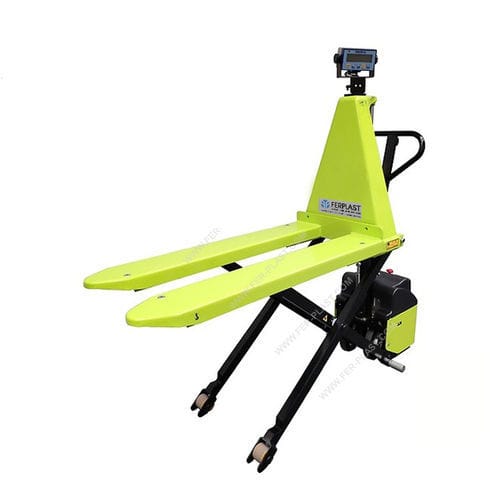

Electric pallet truck FHPX540/115EP

12 Vscalehandling

PALLET TRUCK FHPX 1000 P - WEIGHER WITH ELECTRIC LIFTINGScissor lift pallet truck, weigher, with manual push and electric lifting up to 715 mm. Fork dimensions 1185x565 mm.Designed with a precise and easy-to-use weighing device, which allows loads to be lifted and weighed simultaneously, making it suitable for all weighing and handling operations. The scale is equipped with a simple and intuitive LCD display, placed on the front of the pallet truck, which can be easily rotated and adjusted according to needs. The display covers an angle of 270°, on the rudder axis, and allows the operator to always have the weighing data under control, in different loading and unloading situations.It can be used as a normal pallet truck but when the load exceeds 400 mm from the ground, the stabilizers that prevent movement come into operation.It is normally used in manual palletizing and depalletizing operations to reduce physical effort and increase productivity.The standard color of the risers is green.MODELFHPX 1T 540 ELoad (Q)1000 KgLifting height (h3)715 mmAdvancementmanualLiftingelectricLifting speed0.13 m/sDescent speed0.13 m/sFork length (l)1185 mmFork width (e)180 mmFork thickness (s)70 mm Minimum fork height (h13)90 mmTurning radius (Wa)1515 mmNumber of front wheels2 in rubberFront wheels width50 mm Front wheels diameter200 mm Number of rear wheels2 in polyRear wheels width60 mm Rear wheels diameter70 mmTrolley weight215 KgBattery typecar typeStandard battery12V 60 AhLifting motor power1.6 KwOperating conditions-12 + 40 °CSupplied with a standard battery and charger.WEIGHT SCALEType DFWLDisplay digitsn° 6Digit height25 mmKgYESLbsYESTaraYESAuto-offYESTotalizerYESPiece countYESAutonomy40 hFull scale accuracy0.05%Load cellsn° 4Division0.5 KgBattery6v 4AhOPTIONAL:GEL BATTERY VERSIONEquipped with battery status indicator and 12V 50Ah C20 battery particularly suitable for deep cycle applications. The gel battery is safer (no acid leaks) and does not require topping up.LITHIUM-ION BATTERY VERSIONEquipped with a long-lasting 24V 30Ah lithium-ion battery. Quick recharge and with the possibility of intermediate recharges. Increased safety, as the battery is acid-free and requires no maintenance.SELF-LEVELING SYSTEMAutomatic system that, through a sensor, adjusts the height of the forks while maintaining the desired working height constant. Equipped with up and down safety microswitch. The sensor is adjustable by the operator. An acoustic and visual signal warns the operator in case of fork movement.APPROVALApproval of CE-M OIML R-76 / EN weighing valid only for commercial purposes in relation to third parties and not valid for tax purposes.THERMAL PRINTERThermal printer for weighing, useful for guaranteeing immediate and traceable control of the weighs made.COLORS AND FEATURESThe trolleys presented are of European production. They are models of excellent quality suitable for professional use.The standard color of the elevators is green however it is not binding as it can change without notice, depending on the availability of the moment.Model: FHPX 1T 540 ELoad capacity: 1000 KgLifting height: 715 mmManual advancement, electric liftingLifting/Descent speed: 0.13 m/sFork dimensions: 1185x565 mmFork width: 180 mmFork thickness: 70 mmMinimum fork height: 90 mmTurning radius: 1515 mmFront wheels: 2 rubber, 50 mm width, 200 mm diameterRear wheels: 2 poly, 60 mm width, 70 mm diameterTrolley weight: 215 KgBattery: car type, 12V 60 Ah (standard), 1.6 Kw lifting motorOperating temperature: -12 to +40 °CWeight scale: Type DFWL, 6 digits, 25 mm digit height, kg/lbs, tara, auto-off, totalizer, piece count, 40 h autonomy, 0.05% accuracy, 4 load cells, 0.5 Kg division, 6V 4Ah battery
