Hydraulic tilter FPLTM10M

manualbinIBC

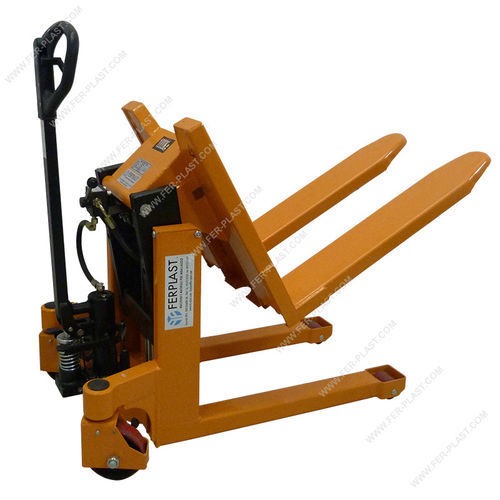

Elevator with manual tipping front at 85° FPLTM10M The elevator-tilter for dump boxes with hydraulic pump driven by the rudder allows operators to lift and fold up to a maximum of 85° each type of fork mounted container (plastic, metal, wood) and to withdraw/deposit products with maximum safety. The height of a pick-up is about 1000-1200 mm (depends on the level of tipping) and allows operators to maintain an ergonomically correct position. The trolley is equipped with a lever valve with two positions (lifting and tilting). Placing the lever on the lifting, forks are raised horizontally up to 285 mm from the floor; by positioning the lever on the opposite side, tilting starts gradually up to a maximum of 85°. Sturdy steel frame with fork tip rounded, steering wheels in polyurethane with parking brake and foot protectors. Caution: The lifter tilts the load up to 85° in the operator's direction so that it can handle its contents very easily. It is recommended the use of the trolley, with all compulsory individual protective devices. It is recommended that you do not stand behind the caisson when the overturning operation is performed. During the tipping phase, it is imperative to rotate the rudder laterally and position yourself in a secure position. MODEL: FPLTM10M Capacity: Kg. 1000 Max forks height (H): mm. 950 Min forks height (h1): mm. 85 Forks width (b): mm. 560 Forks length (l): mm. 800 Barycenter (C1): mm. 400 Frontal inclination: 85° (at the rudder) Rudder height (L1): mm. 1138 Front rollers diameter: mm. 80 Steering wheels diameter: mm. 150 Weight: Kg. 178 Overall dimensions (BxLxL1): mm. 638 x 1325 x 1138 h. OPTIONAL Mechanical block to stop the forks from tilting at any angle between 40° and 80°. Bear in mind that the maximum inclination of the elevator will not be 85° anymore, but the degree selected when ordering (e.g. 50°). - Manual elevator-tilter for containers - Inclination capacity: 85° - Load capacity: 1000 Kg - Hydraulic pump operated by rudder - Sturdy steel frame - Polyurethane steering wheels with parking brake and foot protectors - Forks: width 560 mm, length 800 mm - Max forks height: 950 mm; Min forks height: 85 mm - Rudder height: 1138 mm - Front rollers diameter: 80 mm; Steering wheels diameter: 150 mm - Weight: 178 Kg - Overall dimensions: 638 x 1325 x 1138 mm (BxLxL1) - Optional: Mechanical block for inclination angle selection (40°-80°)
