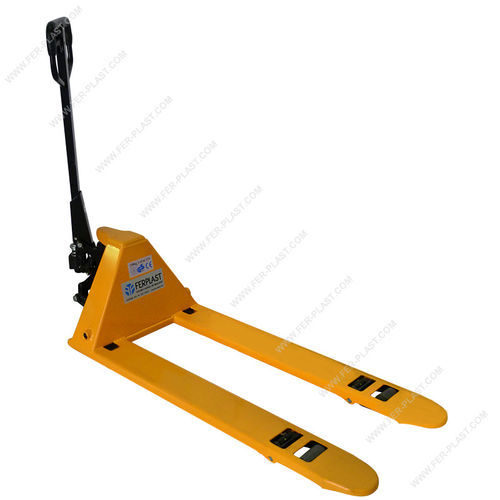

Hand pallet truck FPBFL 15 W 550
low-profile

Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 2
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 3
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 4
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 5
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 6
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 7
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 8
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 9
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 10
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 11
Hand pallet truck - FPBFL 15 W 550 - Ferplast - low-profile - image - 12
Add to favorites
Compare this product
Go to the Ferplast website for more information

Characteristics

Operation
hand
Other characteristics
low-profile
Load

1,500 kg
(3,306.93 lb)

Lifting height

Max.: 14 cm
(5.5 in)

Min.: 5.2 cm
(2 in)

Fork length

115 cm
(45.28 in)

Fork width

15 cm
(5.9 in)

Weight

65 kg
(143.3 lb)

Description

Manual pallet truck with lowered forks. Special pallet truck with minimum fork height lower than normal pallet trucks. Indispensable for handling non-standard pallets, vending machines, machinery, etc. Available in models: - FP SR 10-W 550: pallet truck with minimum fork height of 36 mm - load 1000 Kg. - FP BFL15 W 550: pallet truck with minimum fork height of 52 mm - load 1500 Kg. Technical Specifications: - Capacity: 1500 kg (FP BFL15 W 550) - Minimum fork height: 52 mm - Maximum fork height: 140 mm - Handle height: 1189 mm - Overall width: 550 mm - Total length: 1547 mm - Forks length: 1150 mm - Forks thickness: 38 mm - Stowage aisle: 1797 mm - Turning radius: 1286 mm - Single fork width: 150 mm - Height from floor: 14 mm - Weight: 65 kg - Steering wheels: Diameter 150 mm, nylon - Front rollers: Diameter 50 mm, steel

Catalogs

No catalogs are available for this product.

See all of Ferplast‘s catalogs
Go to the Ferplast website for more information

Other Ferplast products

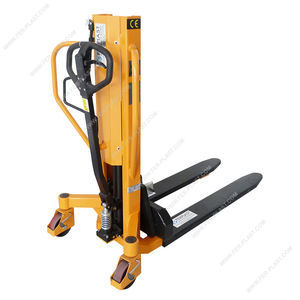

Standard and special pallet trucks
