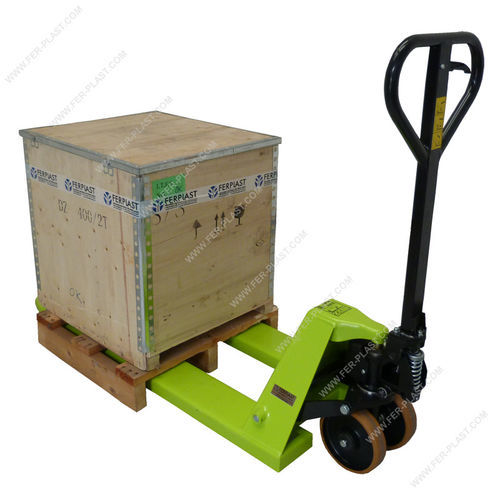

Hydraulic pallet truck FPGS 30 series

handsteelfor heavy-duty applications

Reinforced Manual Pallet Truck 3000 Kg The reinforced pallet trucks of the Ferplast FPGS 30 series, with a capacity of 3000 Kg, are extremely robust and suitable for heavy applications in the industrial and logistic sectors. They are characterized by: - Structure in drawn sheet steel with rounded fork tips. - Hydraulic unit built in cast iron with integrated oil tank to prevent leaks and rustproof chromed piston. - Lifting with drawbar activation and automatic return to vertical position. - Safety valves for lifting and overload limit switches. - Control valve for descent proportional to the weight exerted by the load. - Directional wheels diameter 200 mm, in polyurethane. - Ergonomic tiller with 3D design for optimal grip. Available in the following models: - Pallet truck with forks mm. 800x400 - Pallet truck with forks mm. 800x525 - Pallet truck with forks mm. 1150x525 - the most requested - Pallet truck with forks mm. 1500x525 - Pallet truck with forks mm. 1800x525 - Pallet truck with forks mm. 2000x525 Powder coating dried at a temperature of 250 °C to ensure maximum resistance to wear and weathering. Technical Data: - Load: Kg. 3000 - Forks length l (mm): 800, 1150, 1500, 1800, 2000 - Forks width b5: mm. 400, 525 - Single fork width e: mm. 150 - Minimum fork height h13: mm. 85 - Forks stroke h3: mm. 115 - Total length l1 (mm): 1200 to 2400 - Rudder height h14: mm. 1160 - Front wheels (operator side): diam 200 x 45 mm, polyurethane - Rear rollers (load side): diam 82 x 60 mm, nylon - Weight: 54 to 144 kg depending on model Models on Request: On demand, pallet trucks 3000 Kg capacity with forks 950x525, 1000x525, 1220x525, 1350x525 mm - price on request - delivery about 3 weeks. Colors and Features: The trolleys presented are of European production. They are excellent quality models suitable for professional use. The color of these is not binding and depends on the model available when ordering.
