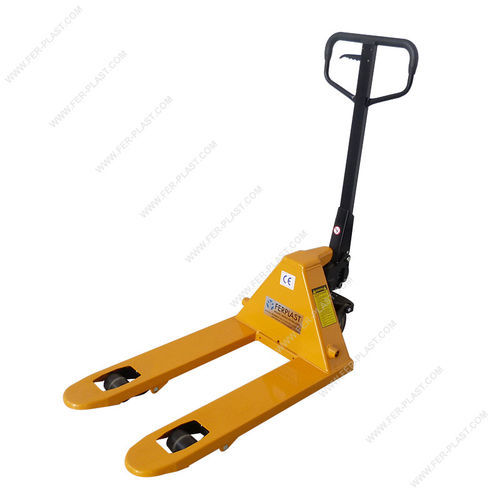

Hand pallet truck FPBF25 L800

hydraulicsteelshort-fork

Short manual pallet truck model FPBF25 L800. Structure in drawn steel with rounded fork tips. Hydraulic unit built entirely of steel mounted on high precision thrust bearing. Control lever with 3 positions and adjustable lowering speed. Lifting operated by rudder and automatic recall upright. Safety valves for hoist limit and overload. Directional wheels made of aluminum with elastic rubber, diameter 200 mm, mounted on ball bearings. Load nylon rollers, diameter 82 mm, with double ball bearings. Technical Data: - Capacity: 2500 kg - Maximum forks height: 200 mm - Minimum forks height: 85 mm - Overall width: 550 mm - Forks length: 800 mm - Weight: 75 kg - Steering wheels: rubber - Front rollers: nylon Short hydraulic pallet trucks with forks 800 mm, width 550 mm, capacity 2500 kg.
