Tool locating ring CP780 series

Overview

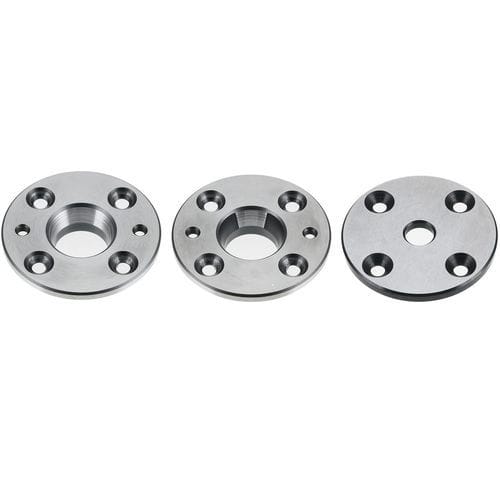

These Flex locator receivers are designed for use with CP157 tapered locator pins. They mount on base plates and fixture plates to provide accurate locating and repeatable positioning with a repeatability of 0.005 mm (5 µm). The Round type has a full tapered surface for full-surface reference; the Diamond type has two opposite tapered surfaces for rotational/directional positioning; the Spacer is used where locating is not required. Body material: 4140 steel, black oxide finish, quenched and tempered, precision ground.

Part options

• CP780-20038L — Round, M3 thread, D=38 mm, use with CP157-08001L
• CP780-20038D — Diamond, M3 thread, D=38 mm, use with CP157-08001L
• CP780-20038W — Spacer, M3 thread, D=38 mm, use with CP157-08001L
• CP780-28052L — Round, M4 thread, D=52 mm, use with CP157-12001L
• CP780-28052D — Diamond, M4 thread, D=52 mm, use with CP157-12001L
• CP780-28052W — Spacer, M4 thread, D=52 mm, use with CP157-12001L
• CP780-36065L — Round, M5 thread, D=65 mm, use with CP157-16001L
• CP780-36065D — Diamond, M5 thread, D=65 mm, use with CP157-16001L
• CP780-36065W — Spacer, M5 thread, D=65 mm, use with CP157-16001L
• CP780-50085L — Round, M6 thread, D=85 mm, use with CP157-20001L

Technical specifications

• Compatibility: designed for CP157 tapered locator pins (match per part option).
• Repeatability: 0.005 mm (5 µm).
• Body material: 4140 steel; finish: black oxide.
• Heat treatment: quenched and tempered; manufacturing: precision ground.
• Available types: Round (full tapered surface) for full-surface reference; Diamond (two opposite tapered surfaces) for rotational/directional positioning; Spacer when no locating required.
• Thread sizes and variants: M3 (D=38 mm), M4 (D=52 mm), M5 (D=65 mm), M6 (D=85 mm) — see part options for full dimensions and matching CP157 pin numbers.
• Dimensional tolerance: H tolerance listed per part option (±0.005 in source table).

Applications & mounting

• Mount on base plates and fixture plates for accurate locating and repeatability in assembly and machining fixtures.
• Use Round type for full-surface reference; Diamond type for controlling rotational position; Spacer where no locating is required.
• Intended for precision industrial fixturing where micrometric repeatability is required.

Ordering & compatibility

• Order by CP780 part number and specify the matching CP157 tapered pin reference shown in the part options.
• Verify thread size, D dimension and H tolerance against fixture requirements prior to ordering.
