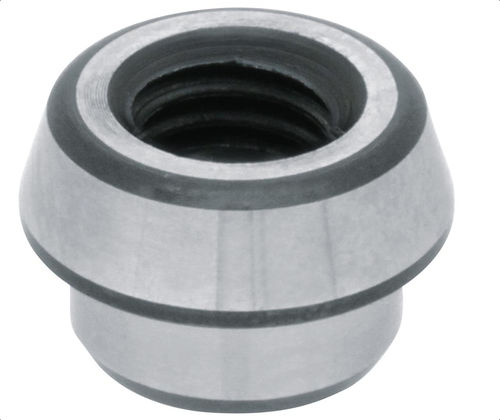

Tapped shank locating pin CP157-L

Product Overview
This tapered locating pin provides precise positioning for modular clamping systems. It locates CP150 flanged clamping modules on a base plate and, when paired with CP780 locating receivers, achieves a typical locating accuracy of 0.005 mm. Manufactured from 1045 steel with a black oxide finish for consistent mating.

Product Types

• Flex clamping locators
• Steel body, black oxide finish

Part Options (table)

• ID 142117 — CP157-06001L: Thread M6x1.00; D 11.5 mm; D1 g6 8 mm; D2 4 mm; H 4 mm; H1 5 mm; Use with Locator Receiver: -; Use with Clamping Module: CP150-06025
• ID 132076 — CP157-08001L: Thread M8x1.25; D 15.5 mm; D1 g6 12 mm; D2 8 mm; H 5 mm; H1 5 mm; Use with Locator Receiver: CP780-20038L, CP780-20038D; Use with Clamping Module: CP150-08040, CP160-08040
• ID 132078 — CP157-12001L: Thread M12x1.75; D 24.5 mm; D1 g6 18 mm; D2 12 mm; H 8 mm; H1 6 mm; Use with Locator Receiver: CP780-28052L, CP780-28052D; Use with Clamping Module: CP150-12063, CP160-12063
• ID 132080 — CP157-16001L: Thread M16x2.00; D 31.5 mm; D1 g6 22 mm; D2 16 mm; H 10 mm; H1 7.5 mm; Use with Locator Receiver: CP780-36065L, CP780-36065D; Use with Clamping Module: CP150-16080, CP160-16080
• ID 168882 — CP157-20001L: Thread M20x2.50; D 44.2 mm; D1 g6 30 mm; D2 20 mm; H 13 mm; H1 7.5 mm; Use with Locator Receiver: CP780-50085L, CP780-50085D; Use with Clamping Module: CP150-20100

Media & Files

• Specifications PDF available for this part (ProductMedia PDF).

Usage Notes

• Used to locate CP150 flanged clamping modules on a base plate.
• Paired with CP780 locating receivers to achieve 0.005 mm locating accuracy.
• Intended for high-accuracy fixturing applications.

Characteristics / Technical Specifications

• Model: CP157-L
• Material: 1045 steel
• Finish: Black oxide
• Typical locating accuracy when used with CP780 receivers: 0.005 mm
• Compatible clamping modules: CP150 series (see Part Options for specific PN references)
• Available thread sizes and variants: M6, M8, M12, M16, M20
