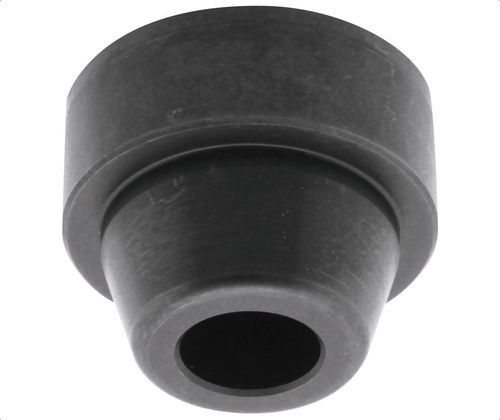

Locating pin CP720 series

Description
These Flex locator pins are designed for use with Flex blind-style receivers. They are intended for mounting on fixture bases and plates to provide accurate locating and positioning with 0.01 mm repeatability when moving workpieces between machines or operations. Suitable for both vertical and horizontal applications. Material: nitrocarburized treated 4140 steel.

Part numbers and dimensions (table)
Part Number | D (mm g6) | D1 (mm) | H (mm) | H1 (mm) | H2 (mm) | For SHCS (prepared hole dia.) | Use Receiver Bushings
CP720-16032 | 16 | 8 | 11.5 | 6.0 | 5.5 | M5x0.80 (4.2) | CP725-16032
CP720-25050 | 25 | 11 | 20.0 | 11.5 | 10.0 | M8x1.25 (6.8) | CP725-25050
CP720-38070 | 38 | 14 | 29.5 | 18.0 | 15.0 | M10x1.50 (8.5) | CP725-38070
CP720-56095 | 56 | 20 | 43.5 | 28.5 | 22.0 | M16x2.00 (14) | CP725-26095


Notes
Use with CP725 blind-style receivers. Designed for fixture bases and plates to provide precise repeatability and positioning.
