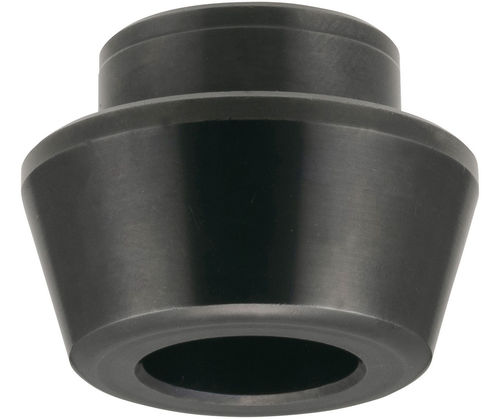

Spring locating pin CP720-N

manually-controlledretractable

Overview
These locator pins are used with Flex CP725 receivers. With a larger flanged shape than the standard CP720 pins, the need for precise depth of the mounting holes is eliminated, allowing for easier installation. The pin and receiver are designed to be mounted on fixture bases and plates for accurate locating and positioning with precise 0.01 mm repeatability when moving to a new machine or different operation. The locator pin engages with the corresponding bushings by screwing down a single clamping screw through the pin and bushing; this action retracts the spring-loaded receiver bushing allowing the fixture plate to contact the base plate. Made from nitrocarburized treated 4140 alloy steel.

Features

• Steel body (nitrocarburized treated 4140 alloy steel)
• Larger flanged shape compared to standard CP720 pins to eliminate precise mounting-hole depth requirements
• Designed for mounting on fixture bases and plates for accurate locating and positioning
• Precise locating repeatability: 0.01 mm
• Engages with corresponding bushings via a single clamping screw through pin and bushing
• Screw action retracts spring-loaded receiver bushing to allow fixture plate to seat on base plate
• Use with CP725 receivers
• Easy mount

Available Parts / Dimensions (table)
Header: ID | Part Number | Thread (T) | D | D1 (+0/-0.2) | D2 | H | H1 | H2 | Locating Repeatability | Use with Locating Receiver
230418 | CP720-10032N | M5x0.80 | 13 | 10 | 8 | 10.0 | 6 | 4.5 | 0.01 mm | CP725-16032
230419 | CP720-15050N | M8x1.25 | 20 | 15 | 11 | 15.7 | 9 | 6.0 | 0.01 mm | CP725-25050
230420 | CP720-20070N | M5x10.1.50 | 30 | 20 | 14 | 22.1 | 13 | 8.0 | 0.01 mm | CP725-38070
230421 | CP720-30095N | M16x2.00 | 45 | 30 | 20 | 31.0 | 17 | 10.0 | 0.01 mm | CP725-56095

Notes

• Designed to operate in combination with CP725 receiver bushings (receiver sold separately).
• Installation via a single clamping screw through pin and bushing.

Caractéristiques / Spécifications techniques

• Model: CP720-N
• Material: Nitrocarburized treated 4140 alloy steel
• Repeatability: 0.01 mm
• Mounting method: Screw down single clamping screw through pin and bushing (retracts spring-loaded receiver bushing)
• Compatibility: Use with CP725 receivers
• Design: Larger flanged shape to reduce requirement for precise mounting hole depth (easier installation)
• Typical thread sizes available (per variants): M5x0.80, M8x1.25, M16x2.00
