Retractable locating pin CP745 series

Description

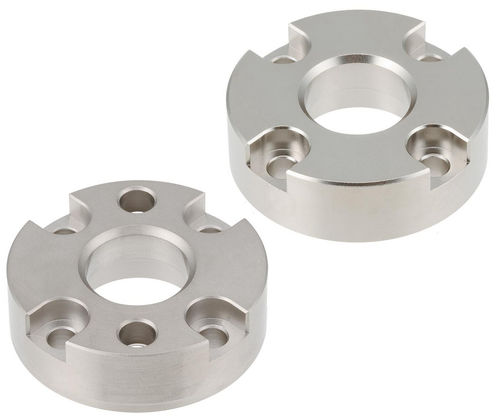

These locator receivers are used with CP745 retractable locator fasteners and are designed to be mounted on fixture bases and plates for accurate locating and positioning. When four or more receivers are used, Standard receivers can be used for additional fastening while at least two Accurate receivers establish repeatable accuracy. Precise repeatability of 0.02 mm is achieved when the locator is used with the Accurate receiver. Made from heat-treated, quenched and tempered 4140 alloy steel, electroless nickel-plated.

Part options

• ID | SKU | Part Number | Type | Description | T Thread | D | D1 | Dp | H
• 230423 | CP745-1640L | CP745-1640L | A | Accurate | M5x0.80 | 40 | 16.2 | 32 | 12.5
• 230424 | CP745-1640S | CP745-1640S | B | Standard | M5x0.80 | 40 | 16.2 | 32 | 12.5

Technical specifications

• Model: CP745
• Compatibility: Use with Flex CP740 locators / used with CP745 retractable locator fasteners
• Repeatability: 0.02 mm (with Accurate receiver)
• Material: 4140 alloy steel, heat-treated, quenched and tempered
• Finish: Electroless nickel-plated
• Available versions: Accurate (A) and Standard (B)
• Thread: M5 x 0.80
• Dimensions (typical from table): D = 40 mm; D1 = 16.2 mm; Dp = 32 mm; H = 12.5 mm
