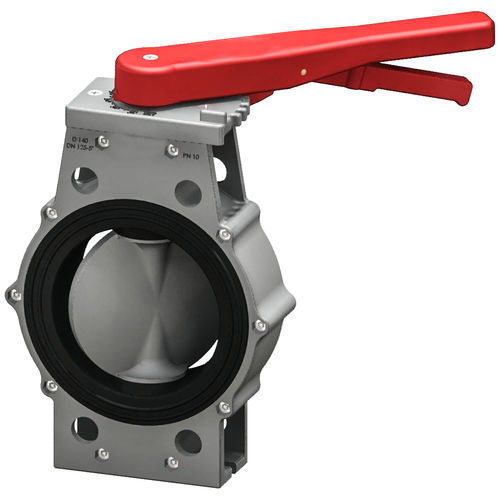

Butterfly valve BV10
leverpneumaticelectric

butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
lever, pneumatic, electric
Function
shut-off, regulating
Media
for water, for chemical products
Body
wafer, PVC-U
Applications
liquids
Other characteristics
ISO
DN

Max.: 300 mm
(11.811 in)

Min.: 50 mm
(1.969 in)

Pressure

10 bar
(145 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Description

The BV10 is a butterfly valve for shutting off or regulating flow, specifically designed for water applications and equipped with a customisable labelling System. Disc in PVC-U with through shaft. Zinc plated square section steel stem completely isolated from the fluid complying with standard ISO 5211. Can also be installed as an end line valve, bottom discharge valve or tank dump valve The wafer valve can be transformed into a one-way Lug body valve thanks to the set of zinc plated steel inserts available as an optional extra. Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations. Possibility of directly installing a gearbox or pneumatic and/or electric actuators with a standard drilling pattern according to standard ISO 5211.
