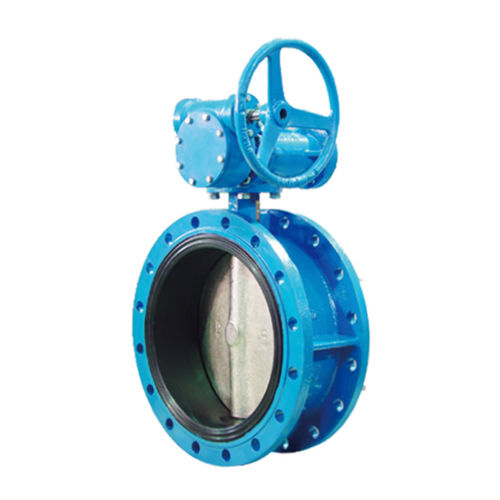

Butterfly valve BV40with handwheelfor wastewaterfor chemicals
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Media
- for wastewater, for chemicals, for gas
- Body
- double-flange, concentric, large, stainless steel, steel
- Applications
- liquids
- DN
Min.: 50 mm
(1.969 in)Max.: 350 mm
(13.78 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)
Description
Flapcon® BV40 series Double Flanged type butterfly valves are manufactured from Ductile Iron, Steel and Stainless Steel castings. The BV40 Series with concentric design and vulcanized rubber gasket material options are manufactured to be compatible with many fluids . Vulcanized gasket design provides extra strength against granular abrasive fluids. Due to its high permeability, it is preferred over large diameter lines. It can be used at the end of line with one side flange connection.
