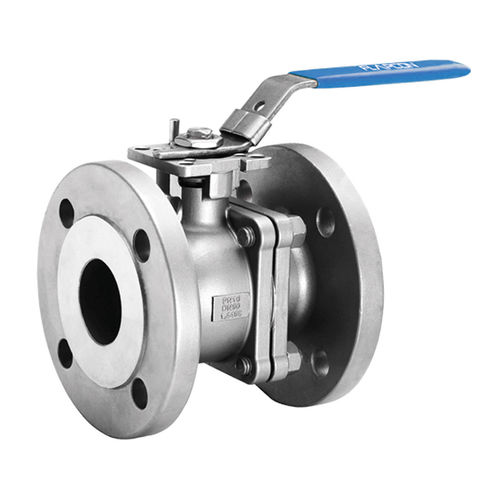

Ball valve BA202-BS
leverfor waterfor chemical products

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Media
for water, for chemical products, for steam
Body
flange, 2-piece, stainless steel, cast iron, steel
Applications
for the food industry, beverage
Fluid specification
for corrosive fluids
Other characteristics
DIN, standard, medium-pressure
DN

Max.: 250 mm
(9.843 in)

Min.: 15 mm
(0.591 in)

Pressure

16 bar
(232.1 psi)

Temperature

Max.: 180 °C
(356 °F)

Min.: -40 °C
(-40 °F)

Description

Flapcon® BA202-BS Series 2-pcs ball valves are manufactured with cast&ductile iron,steel and stainless steel casting variants. Due to its full-bore spherical structure, it provides high permeability. They can be specially produced for all fluids with different materials and sealing options. The choice of a wide range of material that reduces the most fluid corrosion at this point provides complete safety for many years. The valve can be manufactured in accordance with manuel lever,gear box and actuator according to EN ISO5211 standards. It is produced as standard for low and medium pressure classes. The BA202-BS stainless steel bodied full bore, two piece ball valves flanged and drilled to PN16/40 are suited for various applications. They have a face to face to DIN 3202 F4, EN 558-1-27 standards. These valves may be locked in the open or closed position. Anti blow-out stem for maximum safety.
