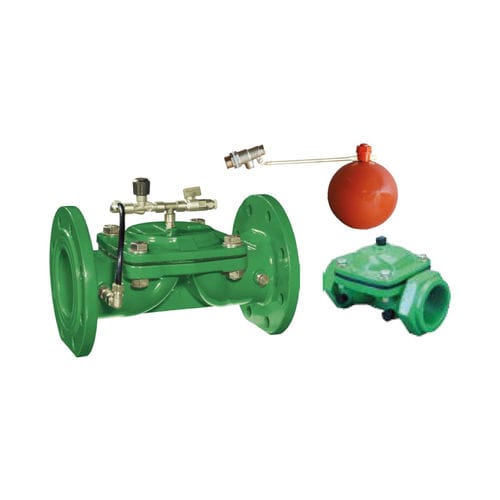

Floating ball valve FLC10-20hydrauliccontrollevel control
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- hydraulic
- Function
- control, level control
- Media
- for water, for chemicals
- Body
- flange
- Applications
- for tank
- Number of channels
- 2-way
- Other characteristics
- modulating, vertical
- DN
Min.: 50 mm
(1.969 in)Max.: 300 mm
(11.811 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 102 us gal/min
(386.11 l/min)Max.: 2,629 us gal/min
(9,951.85 l/min)
Description
The Differential Float Level Control Valve is the hydraulic control valve designed to control water level in reservoirs and tanks continuously. Main valve is controlled by 2-way modulating type float pilot valve manually. Main valve mounted on reservoir and tank upstream is closed as fully sealed without causing surge when water level reaches to maximum level. Valve opening/closing speed may be adjusted in set value. It may be used in the system by mounting horizontal or vertical positions.
