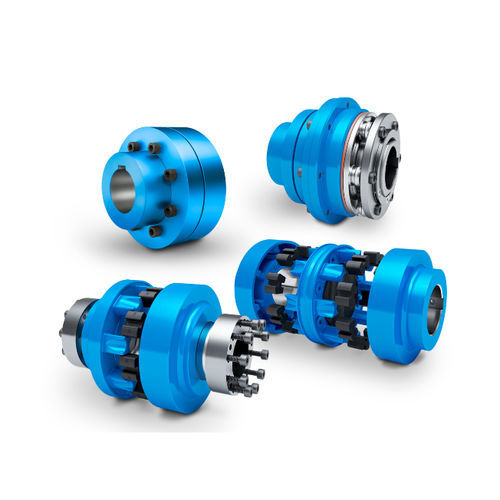

Torsionally flexible coupling N-EUPEX
pin and bushflexibleblower

torsionally flexible coupling
torsionally flexible coupling
Add to favorites
Compare this product


Characteristics

Type
torsionally flexible, pin and bush, flexible
Product applications
blower, for blowers, for compressors, for pumps
Installation system
flange
Torque

Max.: 62,000 Nm (45,728.8533 ft.lb)

Min.: 19 Nm (14.0137 ft.lb)

Description

Damping shaft coupling that can be used universally to compensate for shaft misalignment Nominal torque range from TKN = 19 Nm up to 62,000 Nm with 23 sizes Temperature range: from –50 °C to +100 °C ​ Robust and proven a million times Due to their torsional flexibility, N-EUPEX® couplings can move critical torsional vibrations away from the operating area of mechanical equipment in such a way that no negative effects on the drive train are to be expected. N-EUPEX couplings are made of high-quality cast iron. The flexible elements made of synthetic rubber (Buna-N) are available in different degrees of hardness for many applications. Metal pins and flexible elements are designed so that no wear occurs when they are properly fitted. Your benefits at a glance Fail-safe for maximum operational reliability Three-part type suitable for plug-in assembly and simplified replacement of elements Choice of elastomer hardness to suit various applications Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX) High degree of availability of parts ex stock Established as an industrial standard, worldwide in use Mining and Cement: heating technology Oil and Gas: pumps, fans, compressors, air condensers Power Generation: pumps, fans, compressors, air condensers, water turbines Chemicals and Pharmaceuticals: driers, lauter tuns, pumps, fans, compressors, mixers, agitators, reactors Plastic and Rubber: single- and double-screw extruders Pulp and Paper: wastewater purification plants Water and Wastewater: aerators Food and Beverage: lauter tuns, reactors, agitators, mixers
