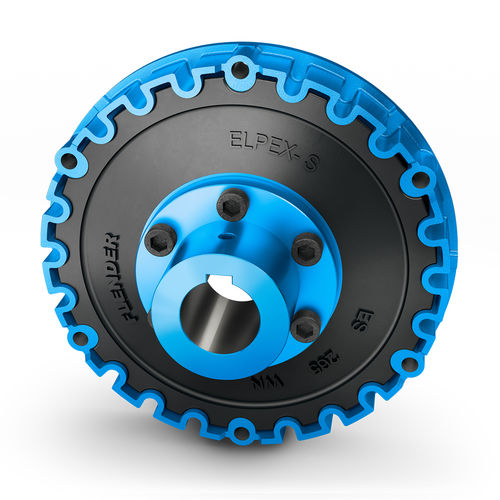

Disc coupling ELPEX-S
high-performancewith high torsional flexibilityflange

disc coupling
disc coupling
Add to favorites
Compare this product


Characteristics

Type
disc
Other characteristics
high-performance, with high torsional flexibility
Installation system
flange
Torque

Max.: 63,000 Nm (46,466.4154 ft.lb)

Min.: 330 Nm (243.3955 ft.lb)

Description

Highly flexible rubber disk coupling to connect machines with high torque fluctuations Nominal torque range from TKN = 330 Nm up to 63,000 Nm with 17 sizes Temperature range: from –40 °C to +120 °C Flexible and adaptable Owing to its low torsional rigidity and damping properties the ELPEX-S® coupling is very well suited to connecting machines with considerably non-uniform torque characteristics. The inside diameter of the rubber disk element is vulcanized on a flange. ELPEX-S couplings are designed as a flange/shaft connection or shaft/shaft connection as standard. The hub can take a taper bush. Your benefits at a glance Insulates torsional vibrations with linear torsion spring characteristics Many kinds of flange connection are possible (including SAE) Easy plug-in assembly even for mounting positions that are difficult to access Types are available where the rubber disk element can be replaced without the need to move the coupled machines Overload protection for the motor and the driven machine Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX) Made in Germany, worldwide in use Used in general mechanical engineering; especially suitable for drives comprising internal combustion engines comprising piston compressors for cement mills Moreover suitable for: Mining and Cement: tube mills, vertical mills, crushers Steel Production: shears, straightening machines, reversing rolling mills, pilger rolling mills Sugar: sugar cane mills
