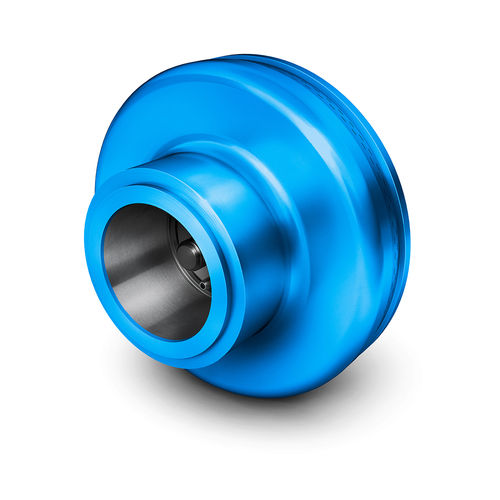

Membrane coupling MBG

maintenance-free

Two-part, torsionally rigid all-steel coupling Nominal torque range up to TKN = 9,500 Nm Temperature range: from –30 °C to +60 °C Good connections thanks to quality FLENDER MBG® membrane couplings are two-part, torsionally rigid all-steel couplings with excellent concentricity and outstanding balance quality because they are balanced together with the motor rotor. The concentricity and balance quality are permanently retained thanks to the optimum centering of the gear teeth on the two coupling halves. Their membrane contour gives them axial yield. The screw fitting makes it possible to detach or connect the motor and gear unit simply without loosening the interference fits. FLENDER MBG couplings are maintenance-free and used to transmit torques and support the motor shaft in the gear unit. Your benefits at a glance High concentricity Excellent balance quality Maintenance-free Optionally available with an electrically insulating design Optionally available with sliding hub and/or engine speed sensor toothing Delivery possible as an assembly with FLENDER rail couplings Parts are 100% trackable Made in Germany, worldwide in use Streetcars Low-floor streetcars
