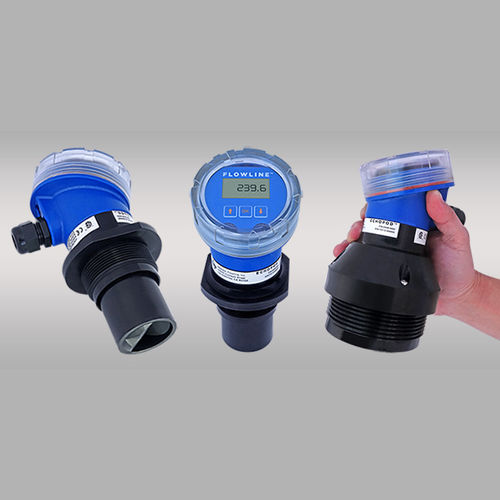

Ultrasonic level transmitter EchoPod® UG series

for liquids4-20 mA2-wire

The general purpose reflective ultrasonic level transmitter provides continuous level measurement up to 39.3’ (12m) with a 4-20 mA analog signal output, and is configured via its integral push button display module or WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. Select this sensor for bulk tanks with non-foaming and mildly vaporous media such as chemicals, water, wastewater and oil. Typical applications include bulk storage, neutralization tank, clarifier and waste sumps. FEATURES Offered in 6m (19.6’) and 12m (39.3’) measurement ranges Reflective Technology™ measures reliably with condensation Corrosion resistant PVDF transducer with IP68 PP enclosure Fail-safe diagnostics with selectable signal fail-safe outputs LCD display indicates level in inches, meters or percent of span Narrow 3” (7.6cm) beam width for applications with limited space Windowed enclosure cap provides liquid tight level indication Configuration via push button display or WebCal software Automatic temperature compensation from -40º to 80º C. REFLECTIVE Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology™ is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces.
