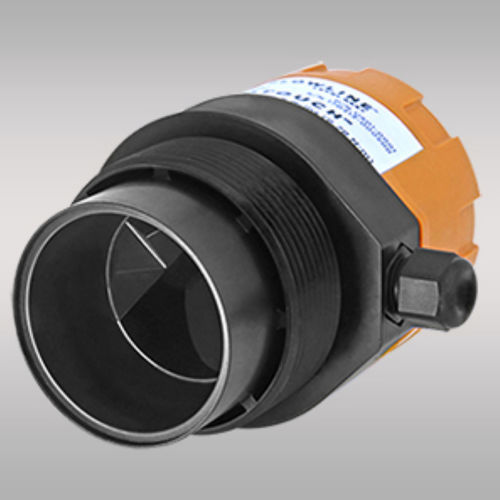

Ultrasonic level transmitter EchoTouch® US series

for oilfor waterfor wastewater

The intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement up to 9.8’ (3m) with a 4-20 mA analog signal output, and is configured via our WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. Select this sensor for small tanks with non-foaming and mildly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. FEATURES Reflective Technology™ measures reliably with condensation Narrow 2” (5cm) beam width for applications with limited space Configuration is easy with WebCal software and USB adapter Short 1.5” (3.8cm) dead band maximizes tank filling capacity PVDF transducer and PP enclosure for corrosive environments Fail-safe diagnostics with selectable fail-safe signal outputs Type 6P (IP68) compact enclosure for small tank applications REFLECTIVE Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology™ is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically,
