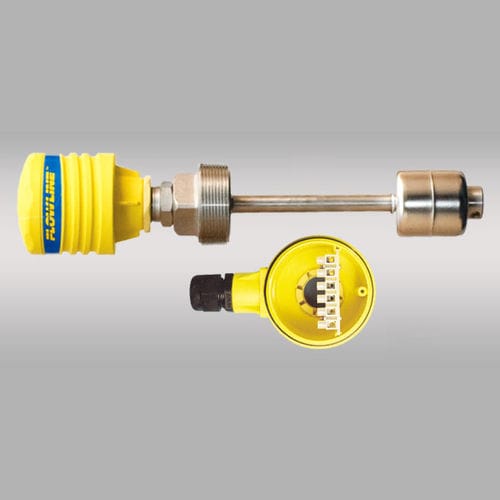

Float level transmitter FloaTek™ LV55 series

for liquids4-20 mA2-wire

The general purpose float level transmitter provides continuous level measurement up to 6.5’ (2m) with a 4-20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Application examples include boilers and process vessels. FEATURES Level measurement solution for high temperature or pressure Rugged 316 stainless steel float guide and process mounting plug Assembled to your guide length and measurement span dimensions PP junction box rated NEMA 4X with conduit port and terminal strip Resolution: 1/4” Configuration: None, fixed span Orientation: ± 30° from vertical Specific gravity: 0.55 minimum Supply voltage: 10 to 30 VDC Loop resist.: 600 Ohms @ 24 VDC Enclosure rating: NEMA 4X (IP65) Enclosure mat.: PP, UL94VO Conduit entrance: Single, 1/2” NPT Process mount: 2” NPT Guide-float mat.: 316 SS Classification: General purpose Compliance: CE
