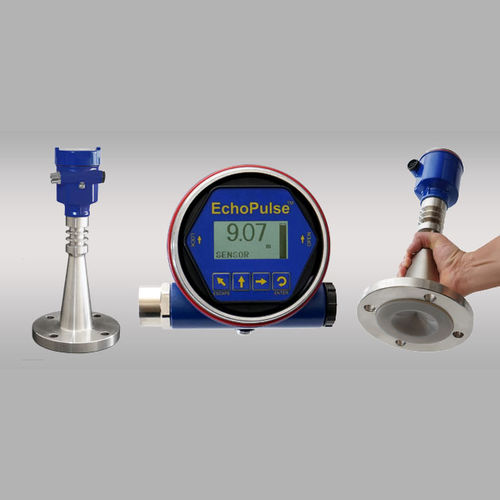

Radar level transmitter EchoPulse® LR20-0310 series

liquid4-20 mA2-wire

The general purpose 26 GHz. pulse radar level transmitter provides continuous level measurement up to 65.6’ (20m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical storage or process applications in above or below grade tanks of any material. Select this sensor for challenging process conditions with corrosive media, light surface foam or agitation, higher temperature or pressure, condensation or vapor, and installation in a flange fitting. Typical applications include bulk storage and process tanks. FEATURES 316L antenna with PTFE inner shield for corrosive media Simple configuration via integral push button display module 26 GHz. pulse radar is unaffected by vapor or condensation 12” (30cm) dead band enables utilization of the entire tank LCD displays level in feet or meters with percent of span bar Optional display mode indicates the echo signal return curve Fail-safe diagnostics with selectable signal fail-safe outputs Recognition, storage and rejection of false echo signal returns Rugged IP67 aluminum enclosure with polycarbonate window Frequency: 26 GHz. Accuracy: ± 3mm Dead band: 12” (30cm) Beam angle: – 30: 12º, – 40: 8º Configuration: Push button Memory: Non-volatile Display type: LCD, dot matrix Display units: Feet and meters Display bar: Percent of span Display graph: Echo signal curve
