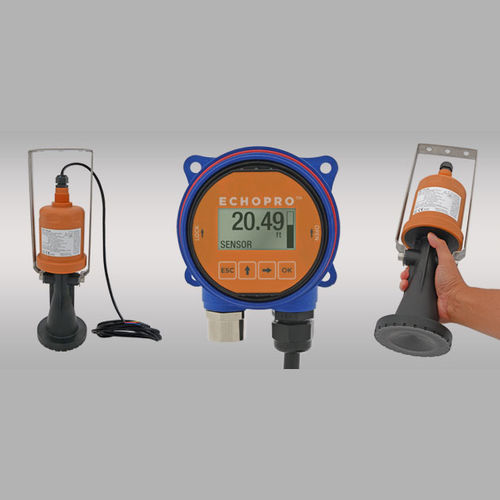

Radar level transmitter EchoPro® LR31 series

for liquids4-20 mA2-wire

The intrinsically safe 26 GHz. pulse radar transmitter provides continuous level measurement up to 98.4’ (30m) with a 4-20 mA signal output, and is configured via its remote push button display module or HART communicator. The non-contact liquid level sensor is intended for industrial wastewater, municipal storm or sewer lift station, reservoir, river, canal or open channel applications located below or above grade. Select this sensor for challenging process conditions that may include light surface foam or agitation, small trash or plant material, wind, condensation or vapor. Each comes with a 32.8’ (10m) cable, mounting bracket and display module. The sensor is designed for bracket mount installation suspended above the liquid level. FEATURES Rugged IP68 sensor enclosure with 304 SS mounting bracket Configuration via push button display or HART communicator 26 GHz. pulse radar is unaffected by sump process conditions Wall mounted display with windowed enclosure rated IP67 12” (30cm) dead band enables utilization of the entire sump LCD displays level in feet or meters with percent of span bar Optional display mode indicates the echo signal return curve Auto-temperature compensation for accurate measurement Self diagnostics with selectable fail-safe signal outputs Recognition, storage and rejection of false echo signal returns Frequency: 26 GHz. Dead band: 12” (30cm) Beam angle: 12º Supply voltage: 21.6 to 26.4 VDC Max consumption: 22.5 mA
