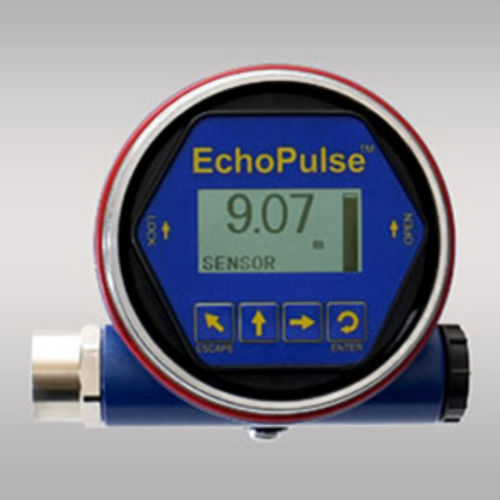

Radar level transmitter EchoPulse® LR10-0010

for waterfor corrosive liquids4-20 mA

The general purpose 26 GHz. pulse radar level transmitter provides continuous level measurement up to 32.8’ (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy process conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting. Typical applications include chemical bulk storage and tanker trucks. FEATURES PTFE encapsulated antenna and mount for corrosive media Simple configuration via integral push button display module 26 GHz. pulse radar is unaffected by vapor or condensation 12” (30cm) dead band enables utilization of the entire tank LCD displays level in feet or meters with percent of span bar Optional display mode indicates the echo signal return curve Fail-safe diagnostics with selectable signal fail-safe outputs Recognition, storage and rejection of false echo signal returns Rugged IP67 aluminum enclosure with polycarbonate window Frequency: 26 GHz. Accuracy: ± 5mm Dead band: 12” (30cm) Beam angle: 22º Configuration: Push button Memory: Non-volatile Display type: LCD, dot matrix Display units: Feet and meters Display bar: Percent of span Display graph: Echo signal curve
