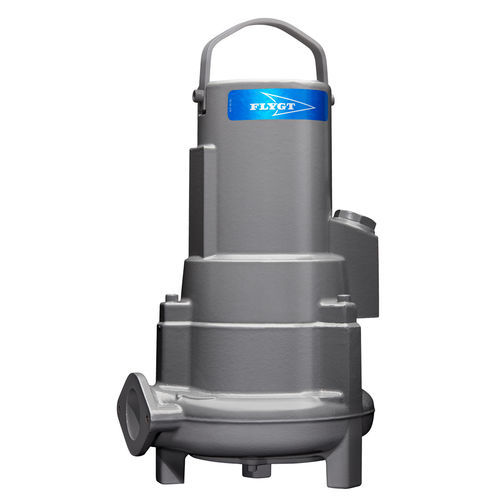

Impeller pump N 3069

wastewaterelectricsubmersible

The Flygt N 3069 small capacity wastewater pump series with Adaptive N® hydraulic technology is unique in its class and delivers outstanding cost-effective performance. Featuring a flexible installation concept, the pumps can be delivered for semi-permanent or portable submersible installation, as well as retrofit installation (configurations F, H, P, S, X). You can also choose from Hard-Iron or grey iron impeller material and standard or explosion-proof pump versions to customize the configuration to fit your exact requirements. N-TECHNOLOGY WASTEWATER PUMP WITH ADAPTIVE N IMPELLER Flygt N-pumps take on the toughest applications and get the job done. Every component is designed and manufactured to deliver sustained high efficiency. Thanks to the self-cleaning Adaptive N impeller, Flygt small range N-pumps lower your energy consumption and reduce unplanned maintenance costs. That adds up to total peace of mind – and big savings over the long term. Most solid objects entering the pump will pass through the impeller between the impeller vanes. If an object gets caught on the leading edge of one of the vanes, it will slide along the backswept shape towards the perimeter of the inlet and be guided out through the relief groove. When larger objects enter the pump, the Adaptive N technology allows the impeller to lift and let the objects through. Due to the mechanical self-cleaning design, a sludge concentration up to 8% can easily be pumped. Overview Specifications Performance Curves Accessories Solutions Documentation & Tools Flygt N-technology 3069 pump with Adaptive N impeller
