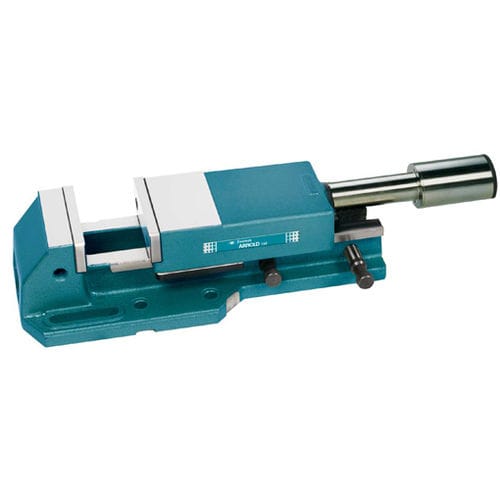

machine tool vise / pneumatic / horizontal / high-pressure
010 602 ARNOLD CLASSIC series

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Operation:

    pneumatic

  • Configuration:

    horizontal

  • Other characteristics:

    high-pressure, automatic

  • Max. clamping force:

    40 kN, 50 kN, 80 kN

Description

High pressure ARNOLD CLASSIC vices achieve a clamping force of up to 80 kN.

- Accuracy of 0.01 mm in clamping repeatability.
- Monoblock design avoids deformations due to high pressure and offers great rigidity and robustness.
- The force applied by the high pressure spindle is transmitted to the work-piece right in the centre of the clamping jaw.
- Large aperture up to 375 mm and 845 mm if the body is in two parts.
- Clamping force is 25/40/50/80 kN, depending on the model.
- ARNOLD CLASSIC spindles can be used independently from the vice as a power clamping element in a workholding set up.
- Designed to automate processes and robotize them .
- Pneumo-hydraulic high pressure single acting intensifier, supplied by compressed air at 6 bars.
- Clamping force adjustable by the air pressure (see manual).
- Automatic stroke for closing and opening up to 3 mm.
- The vice operation may be manual (used with a valve unit sent with the vice) or by using a pedal situated near the machine or may be controlled by CNC by using a solenoid valve.
- Two-parts straight vice option upon request.
TIPS FOR USE

- The air must be filtered (dry air).
- Should control pedal be used: the set of valves supplied with the vice must be placed between the compressor and the pedal, not between the pedal and the vice.
