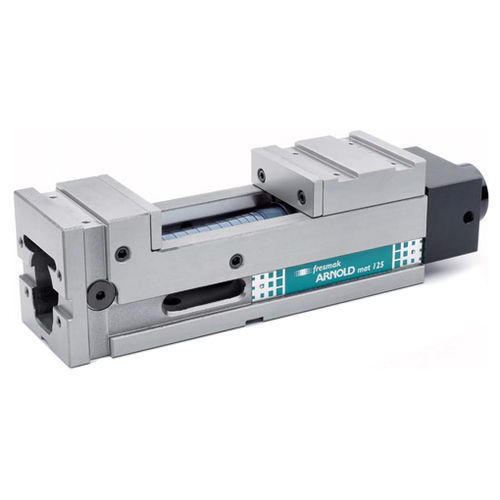

grinding machine vise / hydraulic / vertical / horizontal
070 200 ARNOLD MAT series
for grinding machines
precision, high-pressure, automatic
Max. clamping force:
40 kN, 50 kN
High pressure ARNOLD MAT vices maintain their length irrespective of the size of the part, for which they are especially ideal for machining centres (vertical and horizontal).
- Accuracy of 0.01 mm in clamping repeatability.
- Monoblock design avoids deformations due to high pressure and offers great rigidity and robustness.
- Ideal for working in horizontal and vertical machining centres.
- Grinding of all surfaces with a parallelism and perpendicularity of 0.02 mm.
- Possible working positions: supported on the base, on the side or on the head vertically.
- Side windows for quick cleaning of the inside of the vices.
- May be clamped to the table either by the four standard clamps supplied or by using four screws located in the body.
- Clamping force is 25/40/50 kN, depending on the model.
- Designed to automate processes and robotize them.
- Two clamping possibilities, either towards the fixed head or the opposite direction. Normal clamping is towards the fixed head.
- Fitted with a high pressure double acting oleo-dynamic spindle, with spring push-back effect.
- 4 mm. automatic stroke for closing and opening.
- Adjustable clamping force and directly proportional to oil pressure input (see manual).
