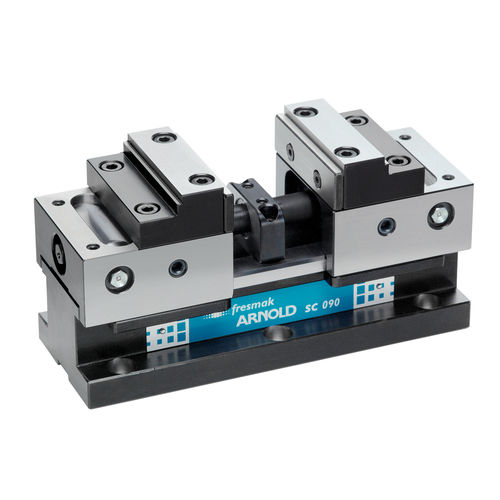

machine tool vise / horizontal / interchangeable jaws / self-centering
050 200 ARNOLD SC series

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Configuration:

    horizontal, interchangeable jaws

  • Other characteristics:

    self-centering, compact, 5-axis machining

  • Max. clamping force:

    11 kN, 18 kN, 32 kN

Description

ARNOLD SC vices are compact, high and self-centring and maintain constant length.

- Accuracy of 0,01 mm in clamping repeatability.
- Accuracy 0,02 mm in centring.
- Designed to work on machining centres with small tables, as well as, within 5 controlled axes machining centres.
- Compact design with exterior guides that avoid deformation as the clamping force is distributed throughout the width.
- Steel components.
- Consealed vice: Totally closed to prevent chips from getting in.
- Threaded right-left spindle which can be operated with a standard key.
- Clamping force ranging from 10 to 35 kN, depending on the model.
- Interchangeable jaws can reach a height of 125 mm, which means they can overcome the biggest obstacle for this type of work by avoiding collisions with the machine spindle or the rotation of the table.
- All standard jaws are may be used by adding soft jaws first.
- Suitable for clamping round work pieces.
- Base plate available for raising the vice available.
- Equipped with a mechanical spindle without high pressure.
- Jaws may be rotated: Large clamping field with 2 jaw positionings.
- Grease points allow for the vice to always be in optimal conditions for use.
SPECIAL JAWS

Possibility of working with machined soft jaws according to the shape of the workpiece.
