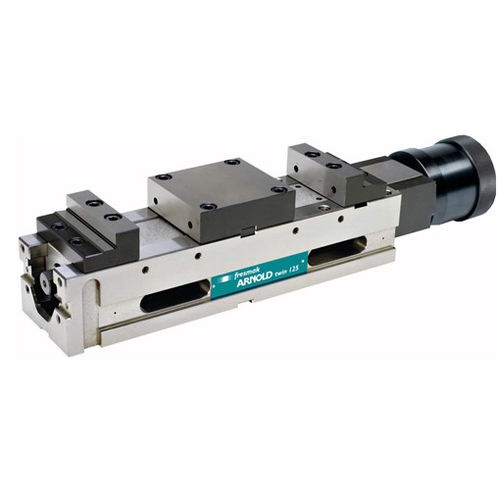

machine tool vise / for grinding machines / pneumatic / vertical
040 600 ARNOLD TWIN

{{requestButtons}}

Characteristics

  • Applications:

    for machine tools, for grinding machines

  • Operation:

    pneumatic

  • Configuration:

    vertical, horizontal, spring, rotary

  • Other characteristics:

    high-pressure, automatic, twin clamping

  • Max. clamping force:

    40 kN

Description

High pressure ARNOLD TWIN vices are capable of clamping two pieces simultaneously.

- Accuracy of 0.01 mm in clamping repeatability.
- Suitable for working in horizontal and vertical machining centres.
- Grinding of all surfaces with a parallelism and perpendicularity of 0.02 mm.
- Possible working positions: supported on the base, on the side or on the head vertically.
- Side windows for quick cleaning of the inside of the vices.
- Clamping force is 25/50 kN, depending on the size.
- Designed to automate processes and robotize them.
- Fitted with a pneumo-hydraulic high pressure single acting intensifier, fed by compressed air at 6 bars.
- Clamping force adjustable by air pressure input (see manual).
- Automatic stroke for closing and opening up to 4 mm.
- The vice operation may be manual (used with a valve unit supplied with the vice), by using a pedal located near the machine or may be controlled by CNC using a solenoid valve.
USAGE TIPS

- The air must be filtered (dry air).
- Should the control pedal be used, the set of valves supplied with the vice must be placed between the compressor and the pedal, not between the pedal and the vice.
ELEMENTS NEEDED

- Connection of the compressor to the vice.
- Filter unit, gauge and lubricator of the air inlet.
