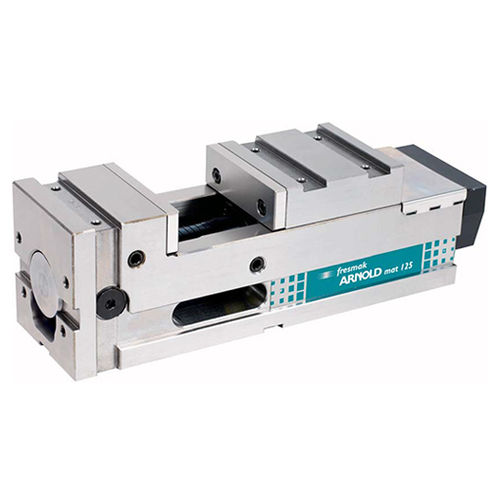

machine tool vise / hydraulic / vertical / horizontal
020 210 ARNOLD MAT series



  • Applications:

    for machine tools

  • Operation:


  • Configuration:

    vertical, horizontal

  • Other characteristics:


  • Max. clamping force:

    40 kN, 50 kN


High pressure ARNOLD MAT vices maintain their length irrespective of the size of the part, for which they are especially ideal for machining centres (vertical and horizontal).

- Accuracy of 0.01 mm in clamping repeatability.
- Monoblock design avoids deformations due to high pressure and offers great rigidity and robustness.
- Ideal for working in horizontal and vertical machining centres.
- Grinding of all surfaces with a parallelism and perpendicularity of 0.02 mm.
- Possible working positions: supported on the base, on the side or on the head vertically.
- Side windows for quick cleaning of the inside of the vices.
- May be clamped to the table either by the four standard clamps supplied or by using four screws located in the body.
- Clamping force is 25/40/50 kN, depending on the model.
- Fitted with a high pressure hydraulic intensifier which does not require any external supply.
- Power regulator optional.
- Angle driver for handle clearance upon request.
