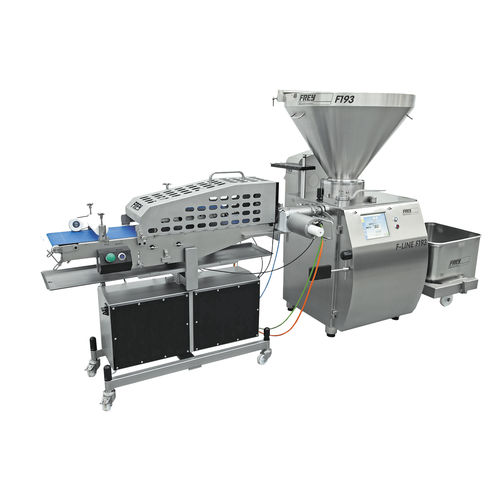

Portioning ground meat production line DMFB92 LIN

fillingcuttingfor control

Automatic line for portioning and forming “homemade-style” products with rounded edges in a low-pressure process. • Incl. belt wetting, scraper, collecting tray and monitored protective cover. • Digitally controlled via TC stuffer control. • Taktzahl und beide Bandgeschwindigkeiten frei einstellbar und reproduzierbar. • Conveyor belt to stuffer outlet is height adjustable. • Lengthwise filling for products such as cevapcici is possible. • Easy cleaning as conveyor belts can be released/removed. • Fully integrated control unit and electrical cabinet with protected connection box. • Huge flexibility when it comes to selecting portion volume as well as shape diameter and thickness. • Product diameter: approx. 30 - 150 mm • Product height: approx. 5 - 55 mm • Maximum outlet: 90 mm • Incl. 2 inserts with hole as required • Double knife driven by Frey linear drive. • Only possible with touch control. • Low-wear, fast and precise cutting. • Noiseless, no compressed air. • High-speed with water cooling • Max. 220 portions/min
