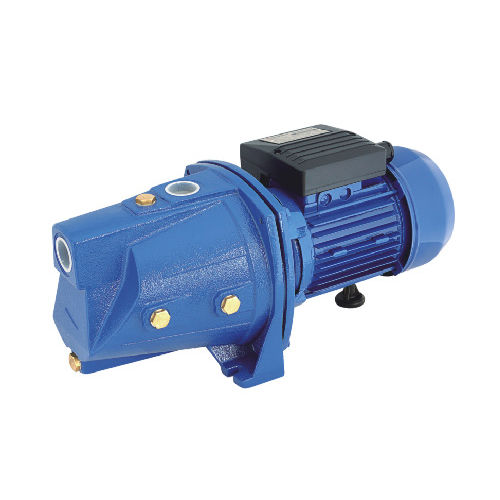

Centrifugal pump JA seriesfor clear waterwith electric motorself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for clear water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary
- Domain
- for home automation
- Applications
- feed, injection
- Other characteristics
- for well
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 52 l/min
(13.73695 us gal/min)- Pressure
10 bar
(145.038 psi)- Head
Min.: 4 m
(13'01" )Max.: 50 m
(164'00" )- Power
Min.: 0.37 kW
(0.5 hp)Max.: 1 kW
(1.36 hp)- Fluid temperature
40 °C
(104 °F)- Length
382 mm, 435 mm
(15 in, 17 in)- Width
157 mm, 195 mm
(6.18 in, 7.68 in)- Height
176 mm, 205 mm
(6.93 in, 8.07 in)- Weight
11 kg, 17.3 kg, 18.7 kg
(24.25 lb, 38.14 lb, 41.23 lb)
Description
The JA series pumps are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather.
