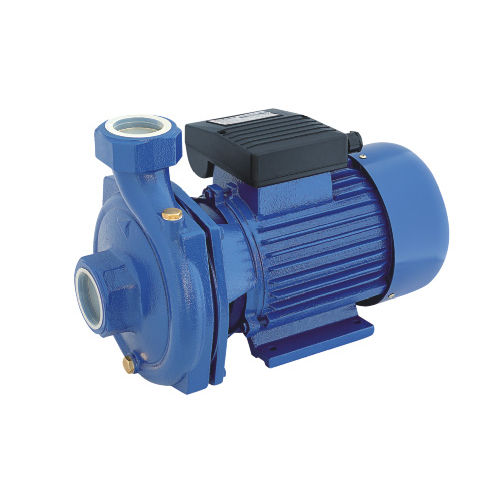

Centrifugal pump CM seriesfor clear waterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for clear water
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- agriculture
- Applications
- irrigation, feed, for industrial applications
- Flow
Max.: 420 l/min
(110.95226 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
10 bar
(145.038 psi)- Head
Max.: 28 m
(91'10" )Min.: 4 m
(13'01" )- Power
Max.: 2.2 kW
(2.99 hp)Min.: 0.75 kW
(1.02 hp)- Length
318 mm, 405 mm
(13 in, 16 in)- Width
169 mm, 213 mm
(6.65 in, 8.39 in)- Height
210 mm, 278 mm
(8.27 in, 10.94 in)- Weight
12.5 kg, 30.5 kg
(27.56 lb, 67.24 lb)
Description
centrifugal pumps with single impeller are able to offer high flow rates, provide smooth, nonpulsating delivery, and regulate the flow rate over a wide range without damaging the pump.
For the correct functioning of the pump, use clean water, or non-aggressive liquids charged with small solid impurities.
To be used in flow irrigation system in gardening, agriculture and industrial fittings.
Pumps should be installed in a covered area, protected
against the weather.
