Clear water pump NGM series
for chemicalsoilwith electric motor

clear water pump
clear water pump
Add to favorites
Compare this product


Characteristics

Fluid
for clear water, for chemicals, oil
Operation
with electric motor
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
distribution
Other characteristics
high-flow, for deep well
Flow

Max.: 100 l/min
(26.41721 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Pressure

10 bar
(145.038 psi)

Head

Max.: 50 m
(164'00" )

Min.: 5 m
(16'04" )

Power

Max.: 1.95 kW
(2.65 hp)

Min.: 1.1 kW
(1.5 hp)

Length

640 mm
(25 in)

Width

225 mm
(8.86 in)

Height

253 mm
(9.96 in)

Weight

36 kg, 38 kg
(79.37 lb, 83.78 lb)

Description

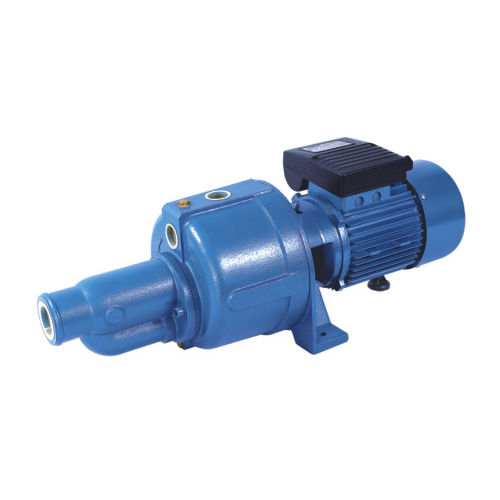

The NGM pumps are with one or two impellers. The two impeller pump can gain bigger flow rate. In fact they consist of two pumps connected in series, one is ejector-pump and the other is centrifugal pump. The ejector pump is lowered in well and connected to the centrifugal pump body by two pipes. These pumps are suitable for pumping clean water and chemically non-aggressive fluids. They are extremely reliable, economical and simple to use, finding many uses in domestic applications and the automatic distribution of water from small and medium-sized surge tanks form an automatic booster systems to supply water. The most remarkable character is it that they can be used to supply clean water from extremely deep well. To ensure adequate counter-pressure, it is always to install a foot valve with a filter on the suction opening. Pumps should be installed in a covered area, protected against the weather.
