Electric heating jacket Couverture chauffante calorifugée

polyesterpolymerdrum

Product overview

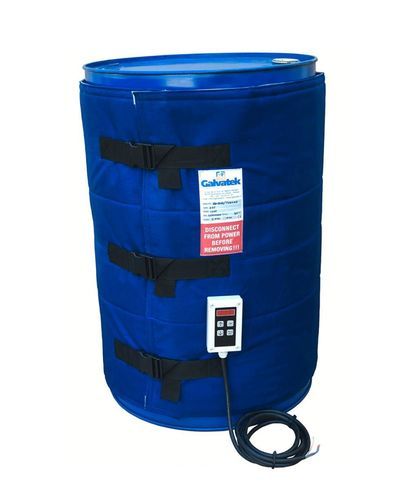

Galvatek's insulated industrial heating jacket is designed to heat and maintain the temperature of 200-litre plastic or metal drums. It delivers uniform surface heating via a large contact area and integrates a Digitherm digital thermostat for accurate control.

Key benefits

• Integrated digital Digitherm thermostat with timer
• Easy installation with quick-release fastening straps
• Large contact area for uniform heat distribution
• Low energy consumption
• Durable polymer-coated polyester fabric
• Effective alternative to traditional heating belts

Main applications

• Temperature maintenance of 200-litre drums
• Heating plastic or metal drums prior to processing, pumping or dispensing

Safety and compliance

• Built-in digital thermostat for precise temperature control
• Thermostat range: 0° to 90°C with built-in timer
• Degree of protection: IP40

Options and accessories

• Digiheat heated base
• Heated base with mechanical thermostat

Technical specifications

• Power: 1200 W
• Supply voltage: 230 V, single-phase
• Insulation thickness: 8 mm
• Circumference: 1990 mm
• Height: 800 mm
• Weight: 5 kg
• Materials: polymer-coated polyester fabric
• Power cable: 3 m polyurethane, type H07RN-F, 3G 1.5 mm²
• Degree of protection: IP40
• Built-in Digitherm thermostat: range 0° to 90°C; built-in timer
