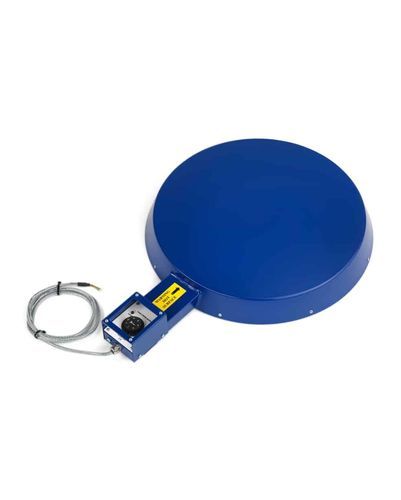

Industrial drum heater Embase chauffante

for vesselswith thermostatelectric

Overview

• Easy to use
• Uniform heat distribution across the entire surface
• Low energy consumption

Product summary
This heating base is designed to heat and maintain the temperature of drums up to 200 liters. Compatible with plastic, steel or stainless-steel drums. Can be used alone, with an insulating cover, or together with a heating blanket. The base incorporates a homogeneous heating plate for uniform surface temperature. A mechanical thermostat allows adjustment from 0 to 150°C and an indicator light shows power status.

Accessories (examples)

• Insulating cover for 200 L drum — provides thermal insulation after using the heating blanket. Not to be used with a heating jacket but can be used simultaneously with a base (Ref: 690402).
• Standard heating blanket — accelerates heating of plastic or metal drums. Usable with the standard heating base (Refs: 630101 to 630401).
• 1200 W insulated heating blanket — faster heating for plastic or metal drums. Usable simultaneously with a heating base (Ref: 730403).

Key Benefits

• Even heating: uniform temperature over the plate surface.
• Simple control: mechanical thermostat with easy adjustment via the control box.
• Energy efficient: low power consumption suitable for industrial use.
• Versatile: compatible with several drum materials and heating accessories.

Main Applications

• Heating and temperature maintenance of drums up to 200 L.
• Industrial processes requiring reliable thermal control.
• Complement to insulating covers or heating blankets.

Technical specifications

• Materials: homogeneous heating plate across the entire surface.
• Technology: mechanical thermostat adjustable from 0 to 150°C; power-on indicator.
• Power: 900 W (3.9 A).
• Supply voltage: 230 V 1ph.
• Power cable: 2 m PVC sheathed with galvanized steel braid.
• Dimensions:
  • Heating plate diameter: 550 mm.
  • Base diameter: 600 mm.
  • Heating plate height: 70 mm.
  • Control box: height 105 mm, length 280 mm.
  • Overall dimensions: length 880 mm, width 600 mm, height 105 mm.
• Degree of protection: IP40.
