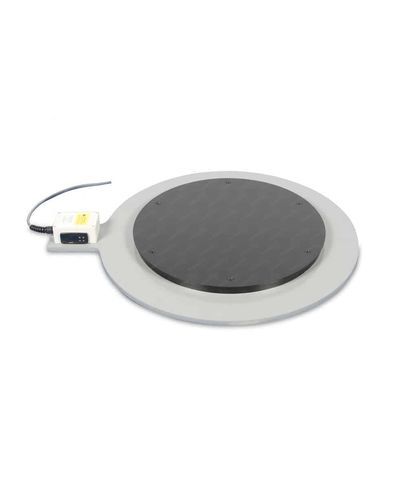

High-temperature drum heater Digiheat

industrialfor barrelsfor plastic drums

Overview
The industrial heating base from the Digiheat range is designed to heat and maintain the temperature of 210‑litre drums made of plastic, steel or stainless steel. The homogeneous heating plate combined with a digital electronic thermostat provides accurate, uniform temperature control. The unit can be used alone, with an insulating cover, or together with a heating blanket to reduce heating time.

Technical specifications (summary)

• Materials: homogeneous heating plate over the entire surface.
• Technology: digital electronic thermostat, adjustable from 0 to 145 °C.
• Power: 850 W (3.5 A).
• Supply voltage: 240 V, single‑phase, 50/60 Hz AC.
• Power cable: 5 m PVC sheath with galvanized steel braid for mechanical protection.
• Dimensions:
  • Overall diameter: 887 mm.
  • Heating plate diameter: 550 mm.
  • Overall height: 59 mm.

Key benefits

• Even heating: uniform heat distribution across the plate for consistent process results.
• Precision: digital thermostat enables accurate temperature setting and control.
• Energy efficiency: optimized power rating for low consumption in continuous use.
• Versatility: compatible with plastic, steel and stainless steel drums and with heated accessories.

Main applications

• Heating and temperature maintenance of drums up to 210 L.
• Acceleration of industrial processes that require fast, uniform heating.
• Use in combination with insulating covers or heating blankets to improve heating times.

Safety and compliance
Equipped with a reliable electronic thermostat for precise adjustment. Power cable protected by a galvanized steel braid to ensure mechanical safety. Design suited to industrial environments and routine operation.

Options and accessories

• Insulating cover for 200 L drum (thermal insulation after heating).
• Standard heating blanket for faster heating of plastic or metal drums; compatible with the standard heating base.
• 1200 W insulated heating blanket for accelerated heating; can be used simultaneously with a heating base.

Technical characteristics

• Model / range: Digiheat.
• Application: drums up to 210 L (plastic, steel, stainless steel).
• Heating plate: homogeneous across entire surface for even heat distribution.
• Thermostat: digital electronic, adjustable 0–145 °C.
• Power rating: 850 W (3.5 A).
• Supply voltage: 240 V, single‑phase, 50/60 Hz AC.
• Power cable length: 5 m (PVC with galvanized steel braid).
• Overall diameter: 887 mm; heating plate diameter: 550 mm; overall height: 59 mm.
• Compatible accessories: insulating cover and heating blankets to accelerate heating.
