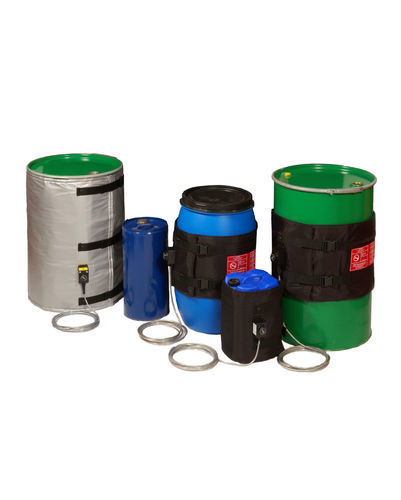

Electric heating jacket Gamme 630

fiberglasspolyesterdrum

Product Overview
The 630 range of standard industrial heating blankets provides an efficient and versatile solution for temperature maintenance and heating of plastic and metal drums from 25 to 220 L. Designed for practical handling and reliable performance, this range covers common industrial needs.

Technical Specifications

• Capacity: 25 to 220-litre drums
• Materials:
  • Outer face: Polyamide substrate coated with polyurethane, reinforced with a nylon 66 base
  • Interior: Polyester or siliconized glass fabric (depending on specification)
  • Insulation: High-density fiberglass
• Fastening system: Adjustable quick-lock clip
• Degree of protection: Splash-proof (IP40)
• Power: Varies by model (200 W to 2×1300 W)

Available References and Characteristics

• Ref 630101 — 200 W — 25 L — 870–1020 mm / 400 mm — 0–90°C
• Ref 630103 — 300 W — 25 L — 870–1020 mm / 400 mm — 0–90°C
• Ref 630104 — 460 W — 25 L — 870–1020 mm / 400 mm — 0–160°C
• Ref 630201 — 250 W — 50 L — 1100–1250 mm / 460 mm — 0–90°C
• Ref 630202 — 400 W — 50 L — 1100–1250 mm / 460 mm — 0–90°C
• Ref 630203 — 640 W — 50 L — 1100–1250 mm / 460 mm — 0–160°C
• Ref 630301 — 400 W — 100 L — 1400–1650 mm / 370 mm — 0–90°C
• Ref 630302 — 650 W — 100 L — 1400–1650 mm / 440 mm — 0–90°C
• Ref 630303 — 1050 W — 100 L — 1400–1650 mm / 600 mm — 0–160°C
• Ref 630401 — 450 W — 200 L — 1800–1950 mm / 440 mm — 0–90°C
• Ref 630402 — 1100 W — 200 L — 1800–1950 mm / 850 mm — 0–90°C
• Ref 630403 — 1300 W — 200 L — 1800–1950 mm / 850 mm — 0–160°C
• Ref 630408 — 2×1300 W — 200 L — 1800–1950 mm / 850 mm — 0–160°C

Key Benefits

• Quick and easy installation
• Large contact area for uniform heating
• Heat distribution across the entire drum surface
• Low energy consumption due to efficient insulation
• Suitable for plastic and metal drums
• Effective replacement for traditional heating belts

Main Applications

• Temperature maintenance of industrial products
• Heating liquids in drums
• Chemical and petrochemical industries
• Food industry
• Water treatment

Safety and Compliance

• Degree of protection: IP40
• Electrical class: Class 2 (double insulation)

Technical features / specifications

• Capacity range: 25–220 L
• Power range: 200 W to 2×1300 W depending on reference
• Operating temperature ranges: 0–90°C and 0–160°C depending on model
• Materials: polyurethane-coated polyamide outer face (nylon 66 base), interior in polyester or siliconized glass fabric, high-density fiberglass insulation
• Fastening: adjustable quick-lock clip
• Protection: splash-proof; IP40
• Electrical class: Class 2 (double insulation)
