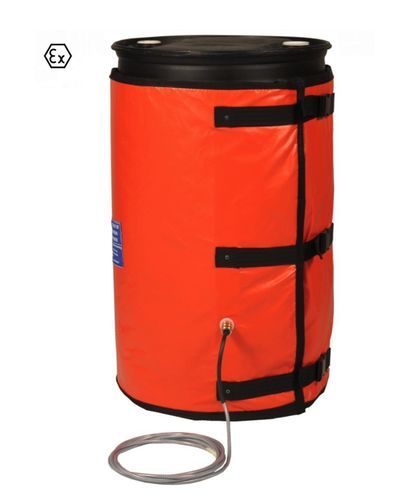

Jacket drum heater Inteliheat

for chemicalsfor liquidsfor low-temperature environments

Product description
The industrial heating blanket from the Inteliheat range provides a certified solution for heating 200L steel and plastic drums in demanding environments, including explosive atmospheres.

Key benefits

• Safe heating of 200L steel and plastic drums
• Suitable for use in explosive atmospheres (ATEX)
• Effective frost protection for stored products
• Patented heating technology based on PTC membranes
• No external transformer required

Main applications

• Gentle heating and frost protection of drum contents
• Use in chemical, petrochemical and pharmaceutical industries
• Areas with explosion risk (ATEX Zone 1 and 2)

Safety and compliance

• Certification: ATEX and IECEx (Zone 1 and 2)
• Device class: Class 2 (double-insulated)
• Degree of protection: IP44

Options and accessories

• Insulating cover for 200L drum — provides thermal insulation after use of the heating blanket (do not use simultaneously with a heated cover)
• Power controller — must be installed outside the ATEX area (non-ATEX)

Technical specifications

• Capacity: 200L (steel and plastic drums)
• Materials: glass fabric coated with an elastomer/silicone mixture
• Insulation: high-density fiberglass
• Heating technology: carbon-enriched PTC semiconductor membranes
• Power rating: 720 W (up to 3 A)
• Supply voltage: ≤ 240 V single-phase, 50/60 Hz AC
• Weight: 9 kg
• Overall dimensions: 1950 mm × 850 mm
• Power cable: 5 m, PVC sheathed with galvanized steel braid
• Certification: ATEX & IECEx (Zone 1 & 2)
• Device class: Class 2 (double-insulated)
• Protection rating: IP44
