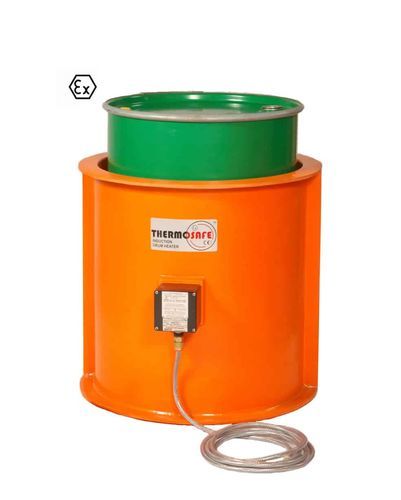

Induction drum heater Thermosafe®

for viscous productsfor pasty productshigh-temperature

Product overview
The Atex Thermosafe® industrial induction drum heater is a certified solution for heating uninsulated metal drums up to 200 litres, including use in potentially explosive atmospheres. Its induction heating method produces rapid and uniform temperature rise across the drum surface, suitable for viscous and semi-solid products such as wax, tar, bitumen and certain organic acids.

Technical specifications

• Materials: Induction coil embedded in a fiberglass‑reinforced epoxy/polyester resin skirt.
• Technology:
  • Induction heating without heating elements or convection.
  • Maximum barrel surface temperature: 123 °C.
• Certifications:
  • ATEX: Sira 06ATEX0166X.
  • IECEx: IECEx BAS 05.0081X.
• Rated for use in explosive zones 1 and 2.
• Power:
  • Start‑up: 2250 W (21 A).
  • Operation: 2250 W (18 A).
• Supply voltage: 240 V 1ph.
• Degree of protection: IP66.
• Dimensions:
  • Outside diameter: 743 mm.
  • Inside diameter: 613 mm.
  • Height: 711 mm.
• Weight: 48 kg.
• Power cable: 5 m PVC sheathed with galvanized steel braid.

Key benefits

• Thermal efficiency: Direct induction coupling delivers higher efficiency than radiation or convection systems.
• Fast, even heating: Rapid temperature rise with uniform heat distribution over the metal surface.
• Operational flexibility: Suited to production lines, warehouses and varied industrial locations.
• Certified safety: ATEX and IECEx approvals for use in hazardous atmospheres.

Main applications

• Heating viscous products: wax, bitumen, tar, gelatin and certain organic acids.
• Use in potentially explosive areas (zones 1 and 2).
• Integration with production or storage processes requiring fast, controlled heating of metal drums.

Safety and compliance

• Standards: EN 60079‑0:2004, EN 60079‑7:2003, IEC61241‑0:2004, EN61241‑1:2004.
• Class EEx e II rating for permitted use up to 170 °C in explosive atmospheres.
• IP66 protection for demanding industrial environments.

Options and accessories

• Handling accessory — Forklift accessory (Non‑ATEX). Ref: 690403.
• ATEX Faratherm heater base — reduces heating time when combined with Faratherm; combined ATEX certification. Base ref: 660401.
• ATEX material handling accessory — operable by a single person. Ref: 690401.
• Power variator — to be installed outside the ATEX zone (Non‑ATEX). Ref: 690001.
