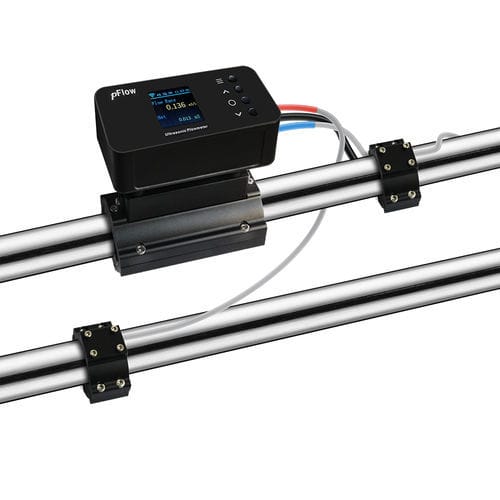

Ultrasonic flowmeter E3CL

for waterDN20 - 3/4"DN25 - 1"

Energy/Flow monitoring, Non-contact, Compact and Light Weight! Introduction In times of increasing energy costs, it is important to measure and control energy consumption accurately. Energy Meters, commonly referred to as BTU meters or heat/cold meter, can be defined by the measurement of heat/chilled water energy consumption. The E3CL energy meter comprises of a flow measurement sensor, two temperature sensors and a microprocessor based energy calculator. The Flow Sensor shall be installed in chilled water return lines in the direction of the chilled water flow either in vertical or horizontal position. The two temperature sensors, one sensor shall be installed on return line and the second sensor shall be installed in supply line. Main Features l In-built Backlit LCD displays flow rates and totalizing functions together l Simple 3 min installation and easy operation l Compact and light-weight at about 0.5kg l Metal and plastic pipes ranging from DN20 to DN80 diameter Applications l Residential heating system water l HVAC chilled water measurement l Agricultural Climate Control l Boiler water/feed water supplies l Cooling water l Deionized water for semiconductor manufacturing Performance specifications Flow range ±0.1ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s) Function specifications Power supply 10~36VDC/500mA Humidity Up to 99% RH,non-condensing Physical specifications Transmitter PC+ABS Keyboard 4 Keys Cable Length Power cable: standard length 2m
