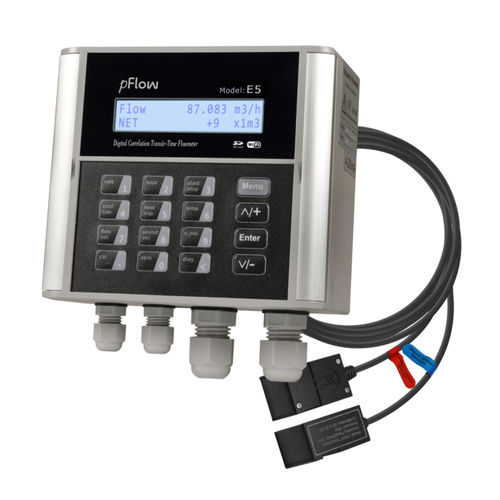

Ultrasonic flowmeter E5

for waterDN25 - 1"DN1200 - 48"

Clamp-on type ultrasonic energy meters for flow and heat consumption measurement. Introduction As an inhabitant of the 21st century, we try to be "smart & green", so the Smart Building has become a very popular concept among citizens and urban planners. Climate control, or HVAC system plays the vital role in the whole building management system, to support the this, a lot of electricity is needed, it is important to measure and control energy consumption accurately, in times of increasing energy costs . Energy Meters(commonly referred to as BTU meters or heat/cool meters), that is used to measure the energy consumption of heat/chilled water, for both commercial and industrial and office buildings. Model E5 is a economical wall-mounted ultrasonic energy meter, basic on Tansit-time technology, can be an ideal choice to integrate with a wide range of applications in HVAC, heating/cooling energy production. Main Features l Wireless communication l Cloud service Applications It is an ideal choice to integrate with a wide range of applications in HVAC, heating/cooling energy production, and other applications such as: l Energy management systems. l Building management systems. l BTU sub-metering systems. Function specifications Optional Outputs OCT Pulse output:0~5000Hz. Analog output:WIFI, 4~20mA, max load 750Ω. Power supply 10~36VDC/1A Keypad 16(4×4)key with tactile action Display 20×2 lattice alphanumeric, back lit LCD. Humidity Up to 99% RH,non-condensing Physical specifications Transducer Encapsulated design,IP68. Transducer cable Standard cable length:30ft(9m). Weight Transmitter:approximately 0.7kg; Transmitter:approximately 0.4kg
