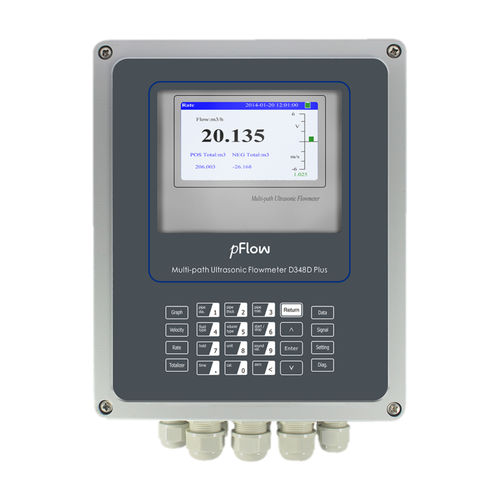

Ultrasonic flowmeter D348D Plus

for hot waterfor wastewaterfor oil

Your reliable high precision flow measurement solutions! The D348D Plus ultrasonic flowmeter is a high-precision instrument with ultra-high accuracy, linearity, and repeatability, which meets strict measurement requirements. Its measurement accuracy is high, and it is almost free from the influence of various parameters and the interference of the measuring medium. It is an ideal solution for flow measurement of strong corrosive, non-conductive, radiant and flammable and explosive media. Main Features l Support multipat l Flow ultrasonic inline flow measurement Applications Virtually all commonly used liquids. Liquids with small amounts of small particles can also be measured. Examples are hot/cold water, sea water, waste water, chemical liquids, oil, crude oil, alcohol, beer, etc. PERFORMANCE SPECIFICATIONS Flow range 0.01~7m/s(0.03~23ft/s) WiFi Frequency range:2.4-2.4835GHz Transmit power:12-14dBm Transmission distance:15-20m (without any obstacle) Wireless standard:IEEE802.11n, IEEE802.11g, IEEE802.11b FUNCTION SPECIFICATIONS SD Card Max record: 4GB Storage time interval: 1 ~13000 s Power supply 90~250VAC,48~63Hz or 10~36VDC Keypad 24 light tactile keys Display 4.7 inch TFT color screen(English/Chinese) Humidity Up to 99% RH,non-condensing PHYSICAL SPECIFICATIONS Weight Transmitter: 4.5kg
